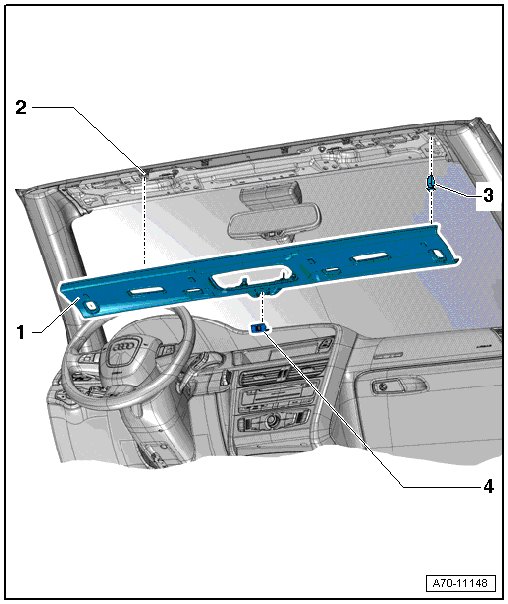

Roof Frame Trim Panel Assembly Overview

Roof Frame Trim Panel Assembly Overview






1 Roof Frame Trim

• Vehicles with

• Removing and installing, refer to => [ Roof Frame Trim ] Roof Frame Trim

2 Clips

• Quantity: 4

• Install inside the roof frame

• Replace if damaged or deformed

3 Clips

• Quantity: 6

• Install in the trim

• Replace if damaged or deformed

4 Trim

• For the interior sensor

• Vehicles with

• Removing and installing, refer to => [ Interior Sensor Trim ] Interior Sensor Trim
