Right Impact Absorber

Right Impact Absorber

Removing






- Remove the driver side instrument panel cover. Refer to => [ Driver Side Instrument Panel Cover ] Driver Side Instrument Panel Cover.

- Remove the driver knee airbag. Refer to => [ Driver Knee Airbag Igniter ] Driver Knee Airbag Igniter.

- Unclip the instrument cluster gap cover from the instrument panel. Refer to => [ Instrument Cluster Gap Cover ] Instrument Cluster Gap Cover.

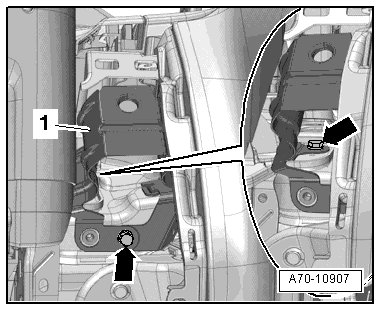

- Remove the bolts - arrows -.

- Remove the right impact absorber - 1 - downward.

Installing

To install, perform the steps used in removal in reverse order.

Tightening specifications, refer to => [ Impact Absorber, Knee Airbag and Glove Compartment Assembly Overview ] Impact Absorber, Knee Airbag and Glove Compartment Assembly Overview.
