Hinge Arm Trim

Hinge Arm Trim

Removing






- Remove the front center armrest upholstery. Refer to => [ Front Center Armrest Upholstery ] Front Center Armrest Upholstery.

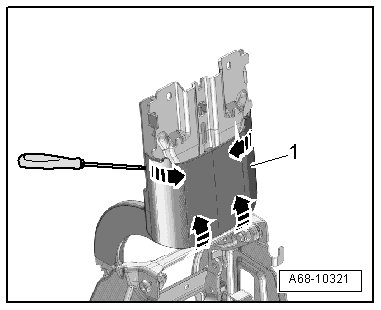

- Carefully unclip the upper trim - 1 - from the hinge arm and from the lower trim - arrows - using a small screwdriver.

- Remove the rear center console trim. Refer to => [ Rear Center Console Trim ] Rear Center Console Trim.






- Fold of the front center armrest.

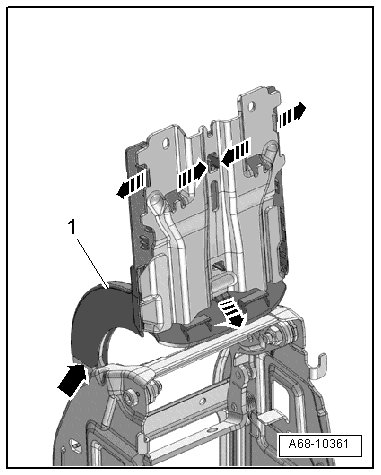

• The illustration shows the front center armrest removed.

- Unclip the lower trim - 1 - from the front center armrest hinge arm - arrows - using a screwdriver.

Installing

Installation is reverse of removal, but note the following:

- Press the covers on until they engage audibly.
