Fog Lamp Bulb

Fog Lamp Bulb

Removing






- Remove fog lamp, refer to => [ Fog Lamp ] Fog Lamp.

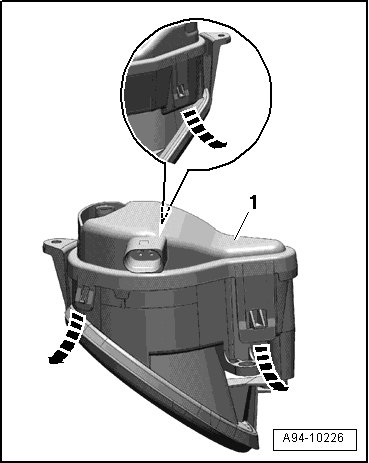

- Release securing guides - arrows - at cap - 1 -.

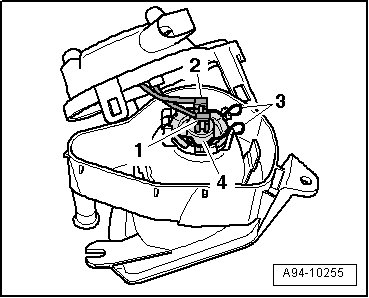

- Disconnect electrical connectors - 1 - and - 2 - on bulb.






- Disengage wire clamp - 3 - and remove bulb - 4 - from housing.

Installing

Install in reverse order of removal, observing the following:

- Insert the new bulb (H7 - 12V, 55 W) into the housing without touching the bulb with bare hands.

- Secure bulb with spring clip.

- Reconnect harness connectors and close housing cover.

- Adjusting fog lamps, refer to => [ Fog Lamps, Adjusting ] Adjustments.
