Fog Lamp Bulb

Fog Lamp Bulb

Removing






- Remove fog lamp, refer to => [ Fog Lamp ] Fog Lamp.

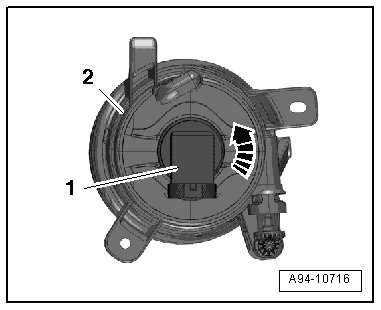

- Rotate the bulb - 1 - counterclockwise - arrow - and remove it from the fog lamp housing - 2 -.

Installing

Install in reverse order of removal, observing the following:

- Insert new bulb (H11 - 12V, 55 W) in housing without touching glass bulb with bare hand.

- Rotate the bulb clockwise to secure.

- Adjusting fog lamps, refer to => [ Fog Lamps, Adjusting ] Adjustments.

Tightening Specifications
