Fog Lamp

Fog Lamp

Removing

- Switch off ignition and remove ignition key.

- Turn light switch into "0" position.

- Remove air intake grille - 1 - in lower part of bumper cover - arrows -.

Vehicles With S Line Equipment:

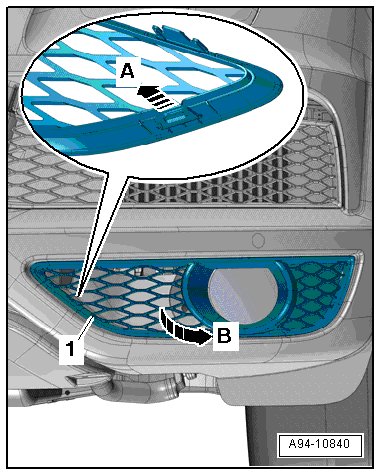

- Release the tab - arrow A - and remove the air intake grille - 1 - in the bottom of the bumper cover - arrow B -.

All Vehicles

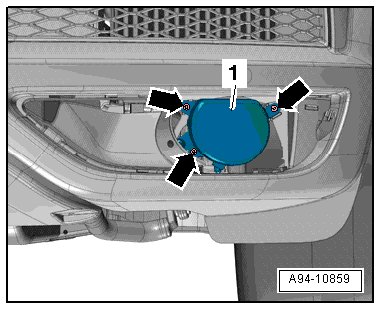

- Remove screws - arrows - and remove the fog lamp housing - 1 - from the bumper cover.

- Disconnect the connector.

Installing

Install in reverse order of removal, observing the following:

- Adjusting fog lamps, refer to => [ Fog Lamps, Adjusting ] Adjustments.

Tightening Specifications
