Timing Chain Covers Overview

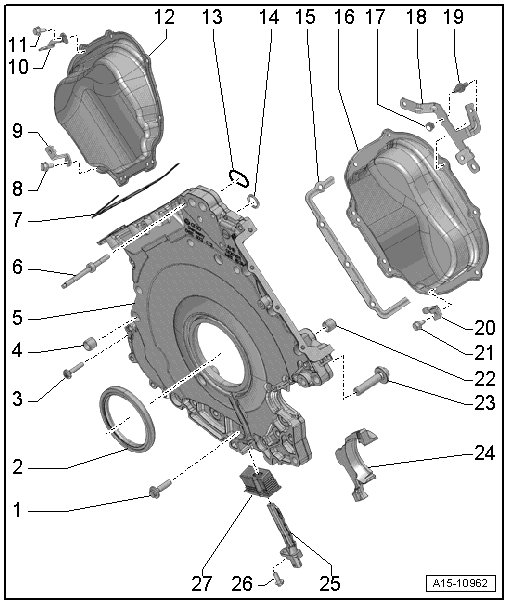

Timing Chain Covers Overview






1 Bolt

2 Shaft Seal

• For the crankshaft, transmission side

• Removing and installing, refer to => [ Crankshaft Seal, Transmission Side ] Service and Repair

3 Bolt

4 Alignment Bushing

• Quantity: 2

5 Lower Timing Chain Cover

• Removing and installing, refer to => [ Lower Timing Chain Cover ] Lower Timing Chain Cover

6 Threaded Pin

• Tightening specification - item 13 - => [ (Item 13) Threaded Pin ] Oil Filter Housing Overview

7 Left Cylinder Head Gasket

8 Bolt

• Replace

9 Bracket

• For wiring harness

10 Bracket

• For wiring harness

11 Bolt

• Replace

12 Left Timing Chain Cover

• Removing and installing, refer to => [ Left and Right Timing Chain Cover ] Left and Right Timing Chain Cover

13 Gasket

• Replace

14 Gasket

• Replace

15 Right Cylinder Head Gasket

16 Right Timing Chain Cover

• Removing and installing, refer to => [ Left and Right Timing Chain Cover ] Left and Right Timing Chain Cover

17 Nut

• 9 Nm

18 Bracket

• For electrical wires

19 Threaded Pin

20 Bracket

• For heat shield

21 Bolt

• Replace

22 Alignment Bushing

• Quantity: 2

23 Bolt

• Replace

24 Cover

• For the opening for the starter

25 Engine Speed (RPM) Sensor (G28)

26 Bolt

27 Cover

• For the RPM sensor

Left Timing Chain Cover, Tightening Specifications and Sequence





• Replace bolts that are tightened to the specification.

• The brackets - arrows A, B - are connected with the left timing chain cover.

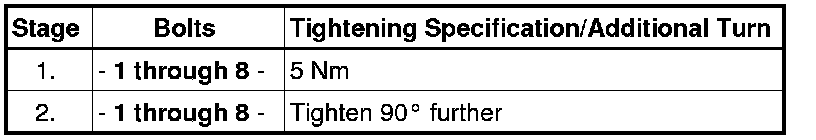

- Tighten the bolts in 2 steps in the sequence shown:






Right Timing Chain Cover, Tightening Specifications and Sequence





• Replace bolts that are tightened to the specification.

- Tighten the bolts in 2 steps in the sequence shown:






Lower Timing Chain Cover, Tightening Specifications and Sequence





• Replace bolts that are tightened to the specification.

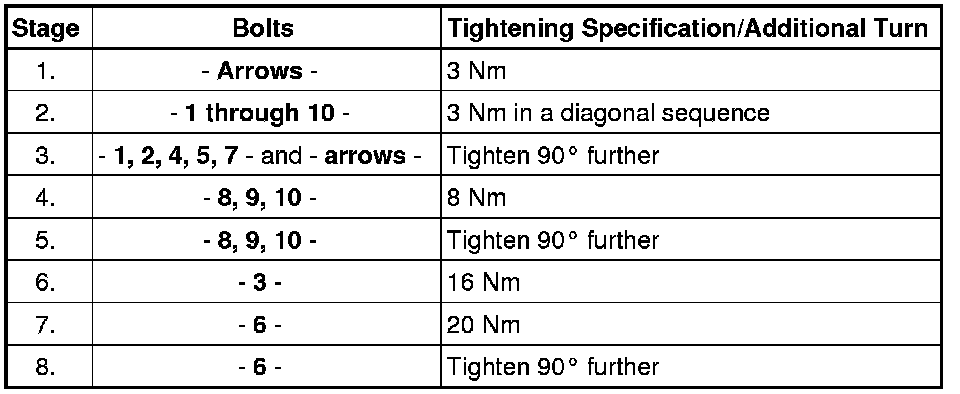

- Tighten bolts in 8 stages as follows:
