Diagram 93/22 (Tracks 281-294)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

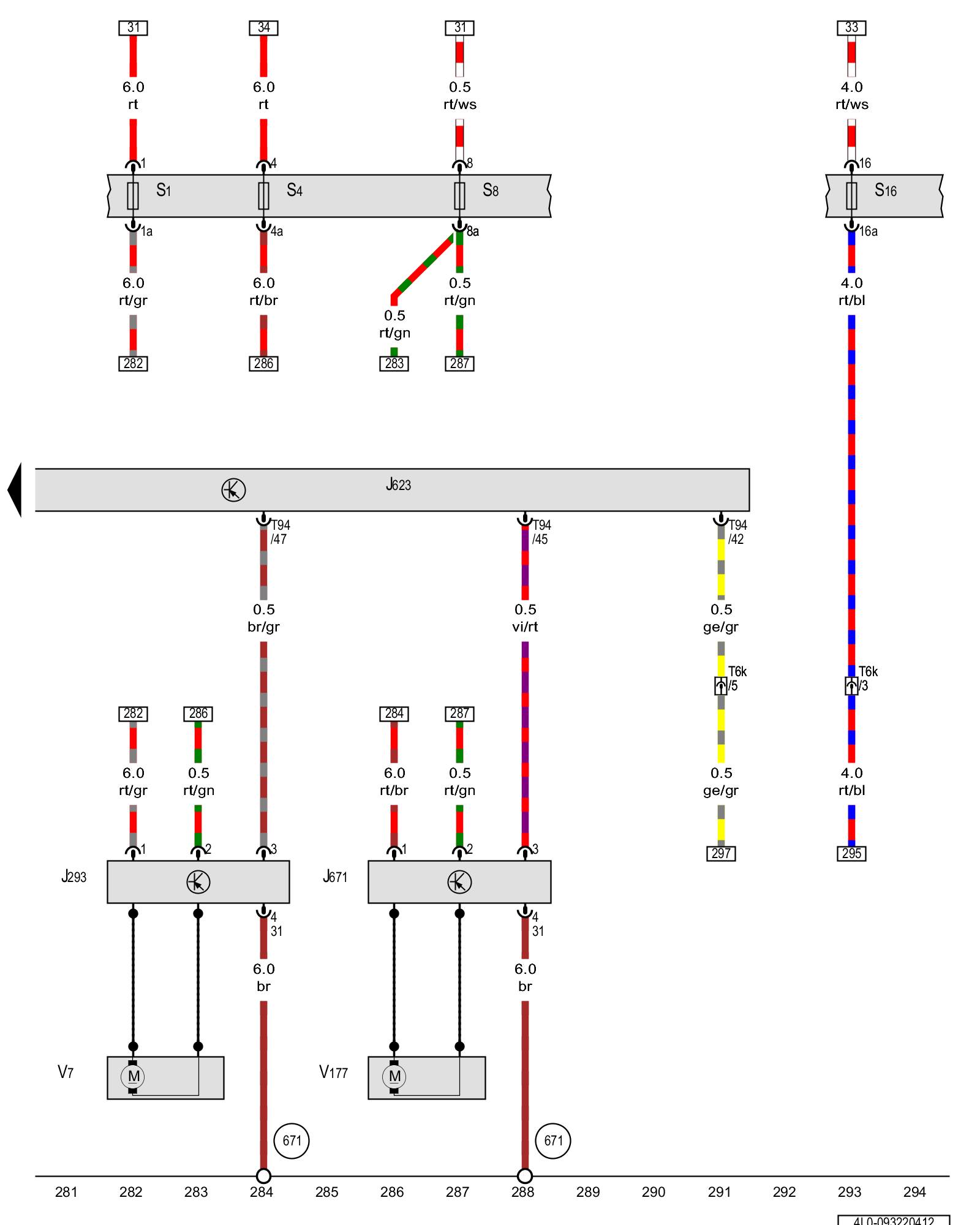

Coolant fan control module, Engine control module, Coolant fan, Coolant fan 2





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J293 - Coolant fan control module Locations

J623 - Engine control module Overview Of Control Modules

J671 - Coolant fan control module 2 Locations

S1 - Fuse 1 (on fuse panel)

S4 - Fuse 4 (on fuse panel)

S8 - Fuse 8 (on fuse panel)

S16 - Fuse 16 (on fuse panel)

T6k - 6-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T94 - 94-pin connector Locations

V7 - Coolant fan Locations

V177 - Coolant fan 2 Locations

(671) - Ground connection 1 on left front longitudinal member Locations

Previous Diagram 93/21 (Tracks 267-280)

Next Diagram 93/23 (Tracks 295-308)
