Diagram 93/20 (Tracks 253-266)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

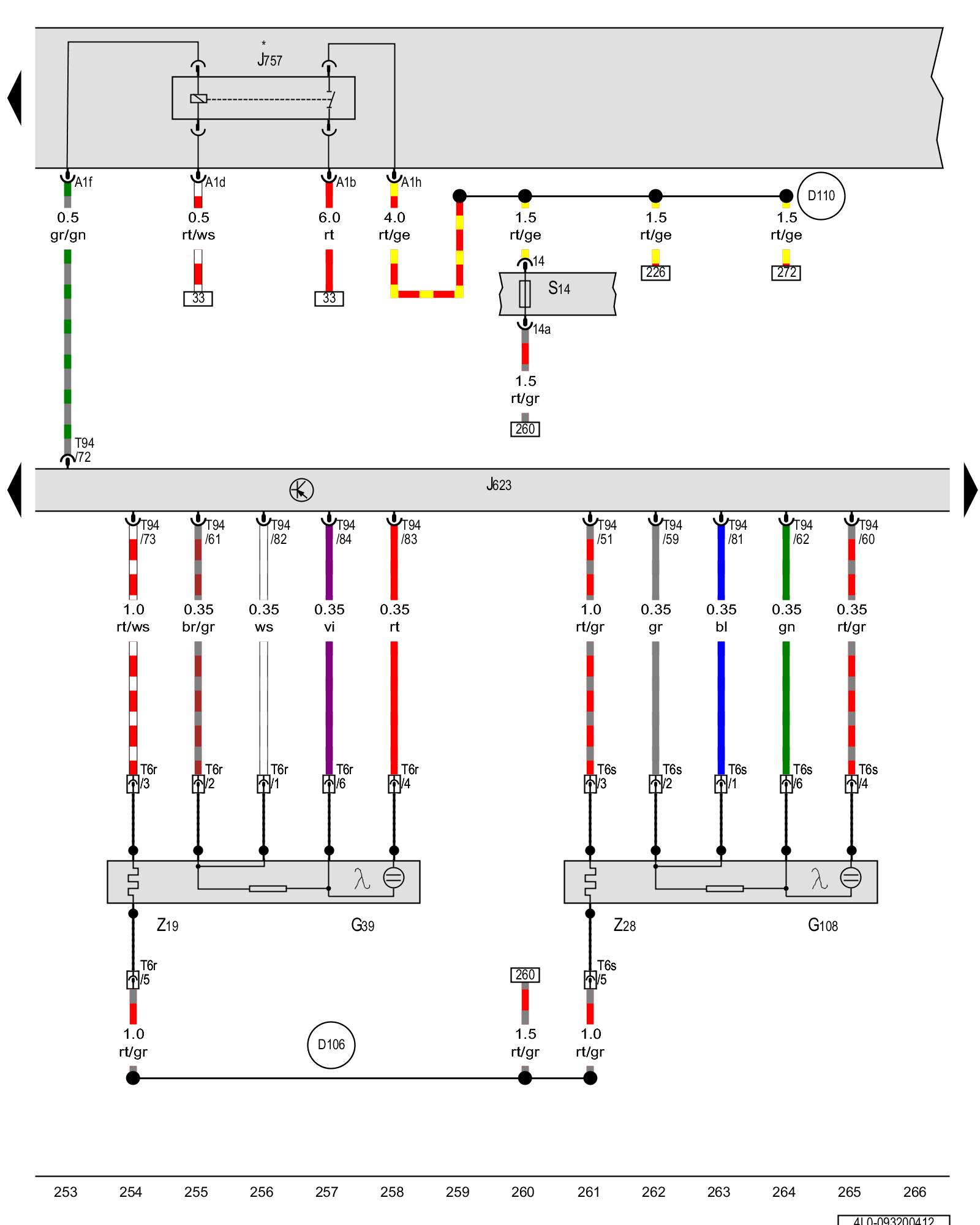

Heated oxygen sensor, Engine control module, Engine component power supply relay





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G39 - Heated oxygen sensor Locations

G108 - Heated oxygen sensor 2 Locations

J623 - Engine control module Overview Of Control Modules

J757 - Engine component power supply relay Overview Of Relay

S14 - Fuse 14 (on fuse panel)

T6r - 6-pin connector, black

T6s - 6-pin connector, brown

T94 - 94-pin connector Locations

Z19 - Oxygen sensor heater

Z28 - Oxygen sensor 2 heater

(D106) - Connection (4) (in engine compartment wiring harness)

(D110) - Connection (8) (in engine compartment wiring harness)

* - Relay and fuse carrier in the plenum chamber E-box

Previous Diagram 93/19 (Tracks 239-252)

Next Diagram 93/21 (Tracks 267-280)
