Diagram 93/15 (Tracks 183-196)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

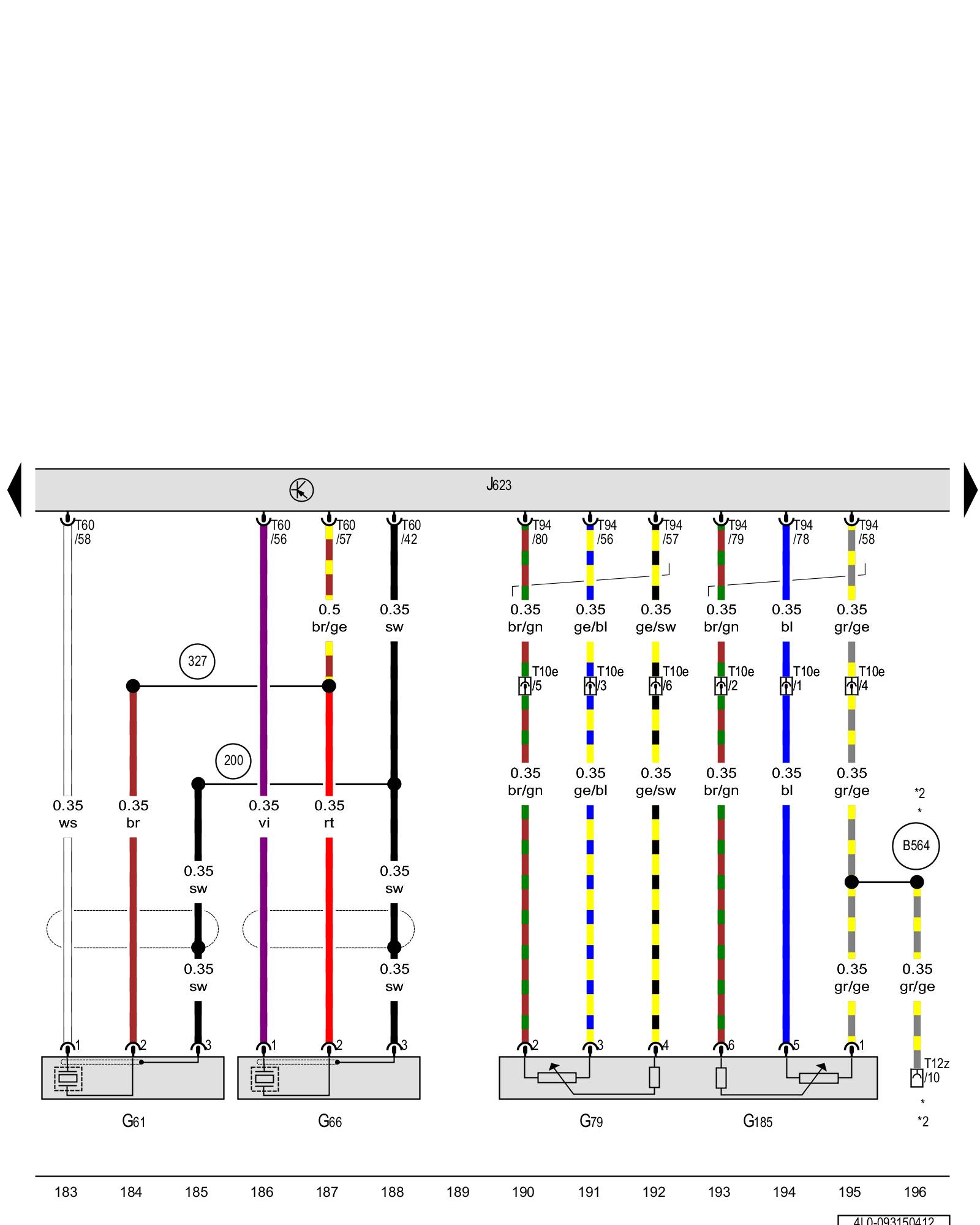

Knock sensor 1, Accelerator pedal position sensor, Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G61 - Knock sensor 1 Locations

G66 - Knock sensor 2 Locations

G79 - Accelerator pedal position sensor Locations

G185 - Accelerator pedal position sensor 2 Locations

J623 - Engine control module Overview Of Control Modules

T10e - 10-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T12z - 12-pin connector, in the luggage compartment, left rear

T60 - 60-pin connector Locations

T94 - 94-pin connector Locations

(200) - Ground connection shielding (in engine compartment wiring harness)

(327) - Sensor ground connection (in engine compartment wiring harness)

(B564) - Connection 31 (in main wiring harness)

* - Only for vehicles with special functions interface

*2 - Through November 2011

Previous Diagram 93/14 (Tracks 169-182)

Next Diagram 93/16 (Tracks 197-210)
