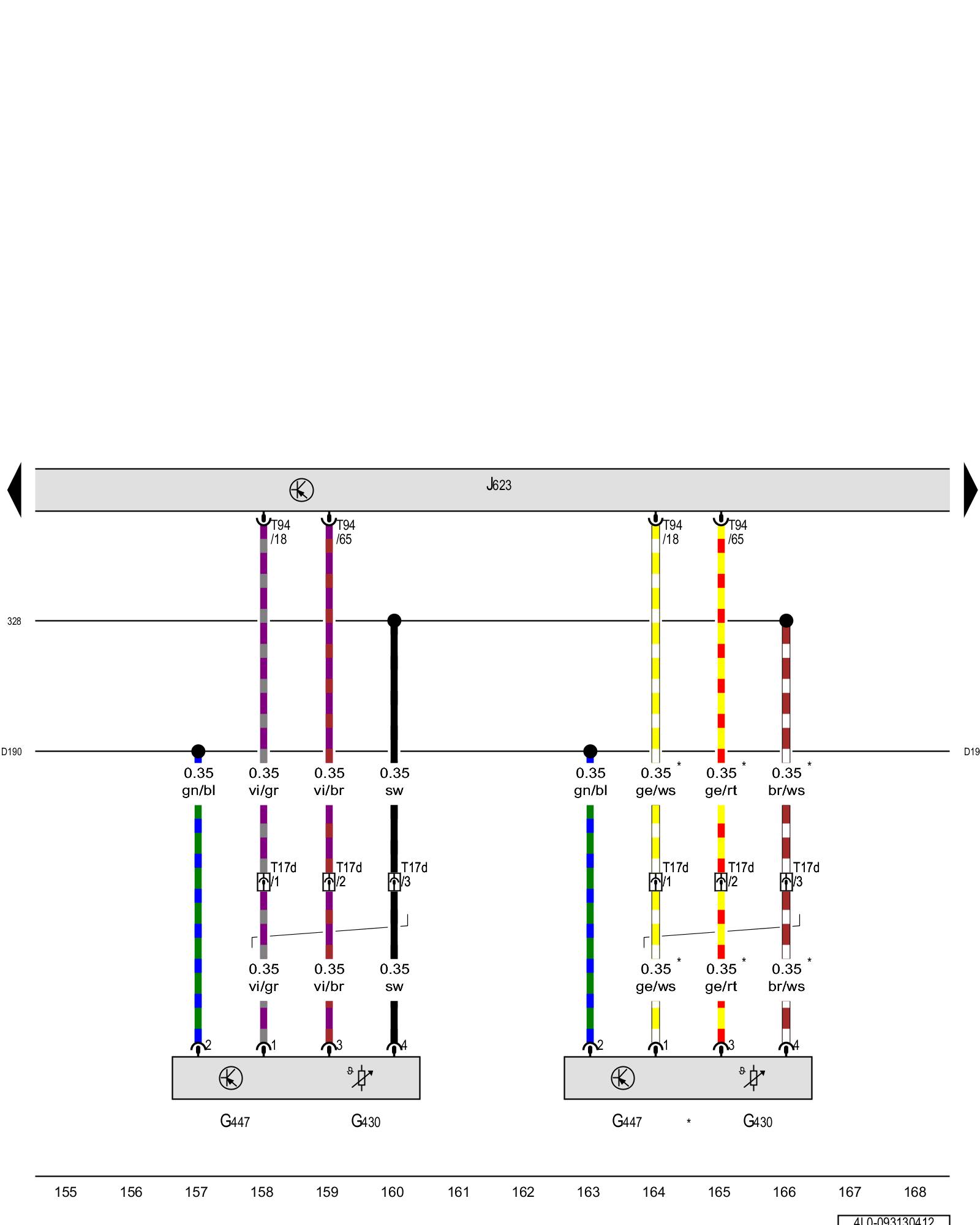

Diagram 93/13 (Tracks 155-168)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Engine control module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G430 - Intake air temperature temperature sensor 2

G447 - Charge air pressure sensor 2

J623 - Engine control module Overview Of Control Modules

T17d - 17-pin connector, Left plenum chamber E-box connector station Overview of Connector Stations

T94 - 94-pin connector Locations

(328) - Sensor ground connection 2 (in engine compartment wiring harness)

(D190) - Connection 3 (5V) (in engine wiring harness)

* - Running change
