Crossmember, With Coil Spring Suspension

Crossmember, with Coil Spring Suspension

Removing

- Remove subframe, refer to => [ Subframe ] Subframe.

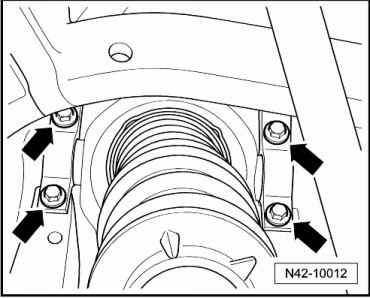

- Remove left and right suspension strut - arrows - and remove crossmember.






Installing

- Install subframe, refer to => [ Subframe ] Subframe.

- Install the suspension strut on the crossmember and tighten to 60 Nm.
