Selector Mechanism Function Unit, Lower Section

Selector Mechanism Function Unit, Lower Section

Removing






- Shifter mechanism function unit, removing. Refer to => [ Shift Mechanism Function Unit ] Shift Mechanism Function Unit.

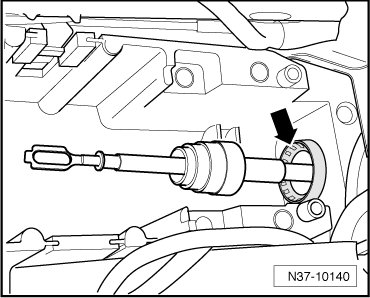

- Push the rubber grommet - arrow - forward and out of the function unit.

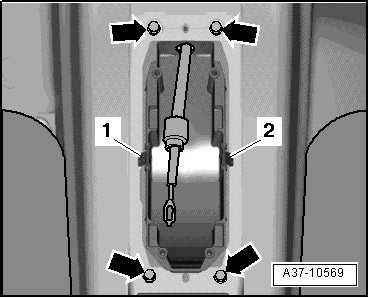

- Remove the hooks - 1 and 2 -.






- Remove the bolts - arrows -.

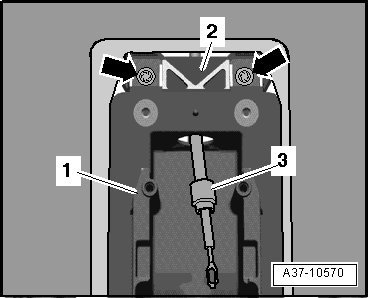

- Pull the lower section - 1 - of the selector mechanism function unit slightly toward the rear and remove the bolts - arrows - from the centering bracket - 2 -.






- Remove the selector mechanism function unit lower section.

- Remove center bracket upward. It may not be installed again.

• The center bracket is only needed for factory production.

Installing

Install in reverse order of removal. Note the following:

• Tightening specifications, refer to => [ Selector Mechanism Overview ] Selector Mechanism Overview.

- Make sure the seal fits correctly on the selector mechanism function unit lower section.

- Install the rubber grommet - arrow - on the selector lever cable into the selector mechanism function unit lower section.






- Shifter mechanism function unit, installing. Refer to => [ Shift Mechanism Function Unit ] Shift Mechanism Function Unit.
