Suspension (Coil Spring)

Upper Control Arm

Removing






- Suspension strut (coil spring), removing. Refer to => [ Coil Spring Suspension Strut ] Coil Spring Suspension Strut

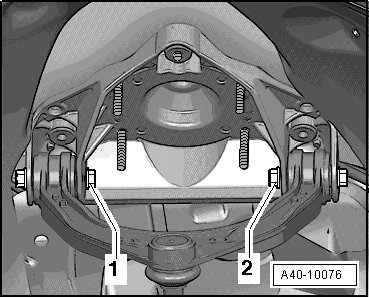

- Disconnect connections - 1 and 2 -, remove upper control arm.

Installing






Installation is the reverse of removal, with special attention to the following:

- Tighten the connections - 1 and 2 - by hand.

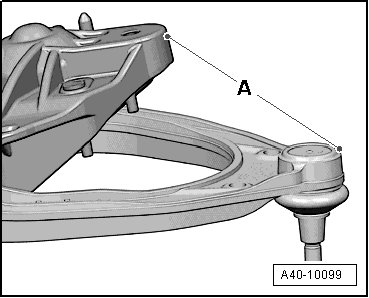

- Set dimension - A -.






A = 155 mm

For illustrative purposes, control arm adjuster is shown removed.

- Tighten connections - 1 and 2 -.

Tightening specifications, refer to => [ Coil Spring Suspension Strut, Upper Control Arm, Mounting Bracket and Level Control System Sensor Overview ] Front Axle Overview

- Suspension strut (coil spring), installing, refer to => [ Coil Spring Suspension Strut ] Coil Spring Suspension Strut.
