Multibox Components Assembly Overview

Multibox Components Assembly Overview

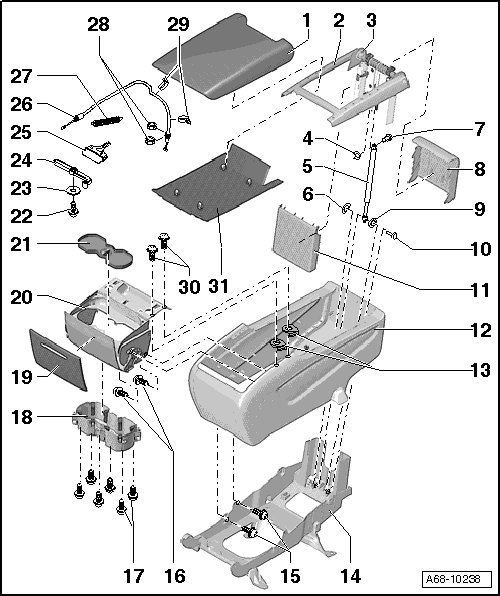

• The components in the exploded view are shown on one side only, the opposite side is identical.






1 Center armrest, upholstery

• Removing and Installing, refer to => [ Center Armrest Upholstery ] Center Armrest Upholstery

2 Center armrest frame multibox

• Cannot be replaced separately

3 Trim

• Be careful when removing; the trim cannot be replaced separately

4 Circlip

5 Gas strut

• Removing and Installing, refer to => [ Gas-Filled Strut ] Gas-Filled Strut

6 Circlip

7 Bolts

8 Trim support base 2

• Removing and Installing, refer to => [ Center Armrest Support Base 1 and 2 Trim ] Center Armrest Support Base 1 and 2 Trim

9 O-ring

10 Bolts

11 Trim support base 1

• Removing and Installing, refer to => [ Center Armrest Support Base 1 and 2 Trim ] Center Armrest Support Base 1 and 2 Trim

12 Multibox trim

• Cannot be replaced separately

• Removing and Installing, refer to => [ Multibox ] Multibox

13 Clip (quantity: 4)

14 Mount multibox

• Cannot be replaced separately

15 Screws (quantity 4)

• Tightening specification - 1.3 Nm

16 Screws (quantity 4)

• Tightening specification - 1.3 Nm

17 Screws (quantity 6)

• Tightening specification - 1.5 Nm

18 Cupholder liner

• Removing and Installing, refer to => [ Cupholder Liner ] Cupholder Liner

19 Cupholder cover trim

• Removing and Installing, refer to => [ Cupholder Cover Trim ] Cupholder Cover Trim

20 Cup holder

• Removing and Installing, refer to => [ Cupholder ] Cupholder

21 Cupholder lining mat

• The lining mat can be removed when the multibox and cupholder are installed.

22 Bolt

• Tightening specification - 1.3 Nm

23 Washer

24 Lever

25 Button

26 Release cable

• Removing and Installing, refer to => [ Release ] Release

• Adjusting, refer to => [ Cable, Adjusting ] Cable, Adjusting

27 Spring

28 Nut (quantity 2)

• Tightening specification - 2 Nm

29 Cable tie (quantity 2)

30 Screw (quantity 4)

• Tightening specification - 1.1 Nm

31 Center armrest trim

• Removing and Installing, refer to => [ Center Armrest Trim ] Center Armrest Trim
