Rear Door Window Gap Dimensions

Rear Door Window Gap Dimensions

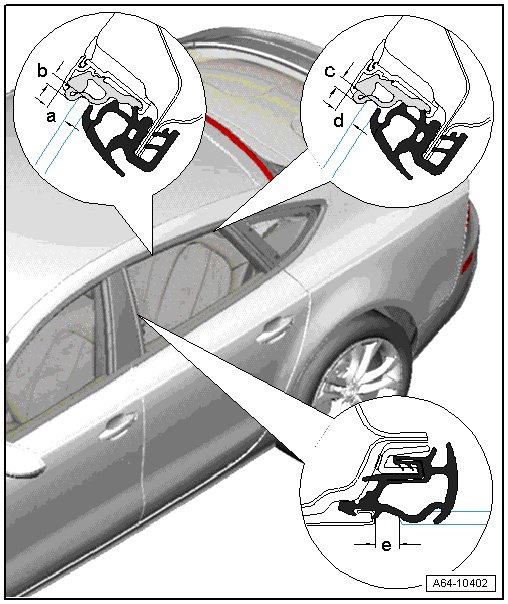

• Adjust the area near the B-pillar. Refer to => [ Rear Door Window, Adjusting ] Rear Door Window, Adjusting

• Dimension -a- = 6 mm +/- 1.5 mm

• Dimension -b- = 4,5 mm +/- 1.5 mm

• Adjust the area near the C-pillar. Refer to => [ Rear Door Window, Adjusting ] Rear Door Window, Adjusting

• Dimension -c- = 5 mm +/- 1.5 mm

• Dimension -d- = 6 mm +/- 1.5 mm

• Dimension -e- = 10 mm +/- 1 mm
