Tunnel Crossmember

Tunnel Crossmember

Special tools, testers and auxiliary items required

• Engine/Transmission Jack (V.A.G 1383 A)

• Transmission Support (T10337)

Removing






- Remove the rear noise insulation - 2 -.

- Mount the (T10337) on the (V.A.G 1383 A) and attach it to the bottom of the transmission.






- Raise the transmission slightly.

There is the risk of an accident.

• The (V.A.G 1383 A) may only be used during assembly and must not sit unsupervised under the vehicle.

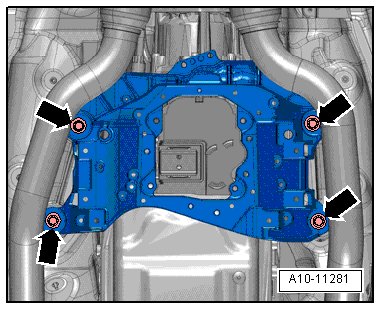

- Remove the bolts from the tunnel crossmember - arrows -.

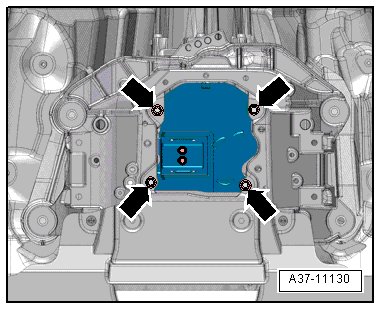

- Remove the nuts - arrow - and the tunnel crossmember.






Installing

Install in reverse order, paying attention to the following:

• For the correct tightening specifications, refer to => [ Tunnel Crossmember, Transmission Mount and Transmission Support Overview ] Tunnel Crossmember, Transmission Mount and Transmission Support Overview.

- Install the front exhaust pipe.

- Install the noise insulation.
