Transmission Mount

Transmission Mount

Removing






- Remove the transmission support with the transmission mount. Refer to => [ Transmission Support with Transmission Mount ] Transmission Support With Transmission Mount.

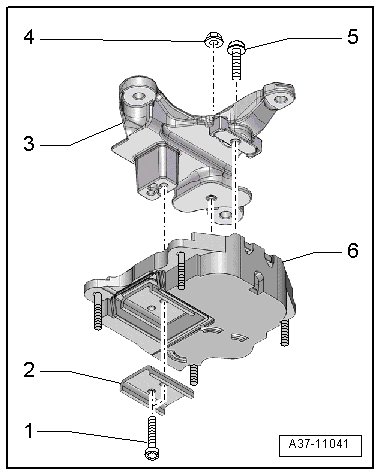

- Remove the bolt - 1 - and remove the stop - 2 - from the transmission mount.

- Remove the nut - 4 - and the bolt - 5 - and then remove the transmission mount - 6 - from the transmission support - 3 -.

Installing

Install in reverse order, paying attention to the following:

• For the correct tightening specifications, refer to => [ Tunnel Crossmember, Transmission Mount and Transmission Support Overview ] Tunnel Crossmember, Transmission Mount and Transmission Support Overview.

- Mount the transmission support - 3 - on the transmission mount - 6 -.

- Tighten the nut - 4 - and the bolt - 5 - hand-tight.

- Tighten the bolt - 1 - for the stop - 2 -.

- Tighten the nut - 4 - and bolt - 5 -.

- Install the transmission support and transmission mount. Refer to => [ Transmission Support with Transmission Mount ] Transmission Support With Transmission Mount.
