Start/Stop System Overview

Start/Stop System Overview

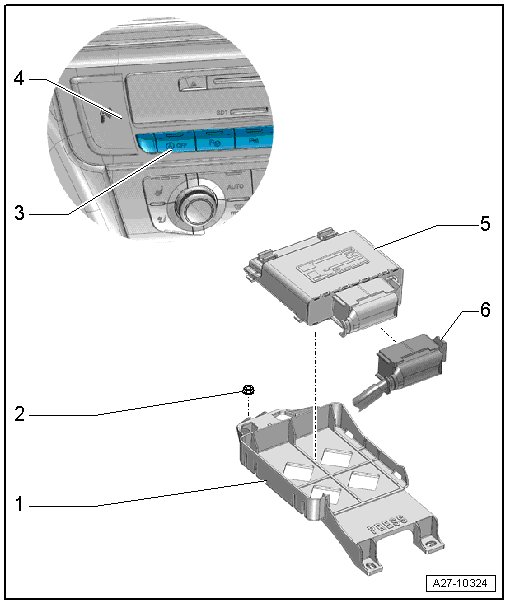

1 Bracket

• For the voltage stabilizer (J532)

2 Nut

• 3 Nm

3 Start/Stop Mode Button (E693)

• Removing and Installing, refer to => [ Switch Unit with Start/Stop Mode Button, Parking Aid Button, Front Passenger Airbag -Disabled- Indicator Lamp, Rear Spoiler Adjustment Switch and ASR/ESP Button ] Unit With Start/Stop Mode Button, Parking Aid Button, Front Passenger Airbag-Disabled-Indicator Lamp, Rear Spoiler Adjustment.

4 Divider

• For information electronics control module 1 (J794)

5 Voltage Stabilizer (J532)


6 Electrical Connector
