Engine Compartment E-Box, Wire Junction, Fuse Holder and Battery Overview

Engine Compartment E-Box, Wire Junction, Fuse Holder and Battery Overview

Observe notes on contact corrosion => [ Contact Corrosion ] Service Precautions.

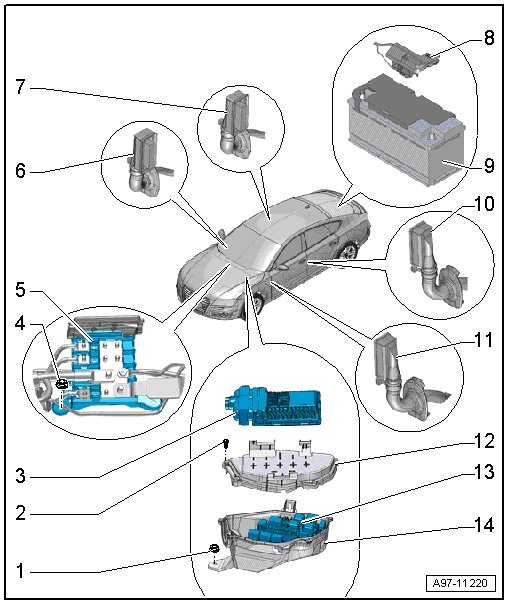

1 Nut

• 3 Nm

• Quantity 2

2 Screw

• 3 Nm

• Quantity 4

3 Engine Control Module

4 Nut

• 3 Nm

• Quantity 2

5 Terminal 30 Wire Junction (TV2)

• Removing and installing, refer to => [ Terminal 30 Wire Junction ] Terminal 30 Wire Junction.

6 Right Front Door Cut-Off Connector

• Disconnecting, refer to => [ Door Cut-Off Connector, Disconnecting ] Door Cut-Off Connector, Disconnecting.

7 Right Rear Door Cut-Off Connector

• Disconnecting, refer to => [ Door Cut-Off Connector, Disconnecting ] Door Cut-Off Connector, Disconnecting.

8 Main Fuse Panel

• In the luggage compartment on the battery.

• Removing and installing, refer to => [ Main Fuse Panel in Luggage Compartment ] Main Fuse Panel In Luggage Compartment.

9 Battery

10 Left Rear Door Cut-Off Connector

• Disconnecting, refer to => [ Door Cut-Off Connector, Disconnecting ] Door Cut-Off Connector, Disconnecting.

11 Left Front Door Cut-Off Connector

• Disconnecting, refer to => [ Door Cut-Off Connector, Disconnecting ] Door Cut-Off Connector, Disconnecting.

12 Cover

• For the plenum chamber E-box.

13 Relay Panel Inside The Plenum Chamber E-Box

• Removing and installing, refer to => [ Relay and Fuse Panel in Plenum Chamber E-Box ] Relay and Fuse Panel In Plenum Chamber E-Box.

• With Fuse panel A (SA), removing and installing, refer to => [ Fuse Panel A in Engine Compartment E-Box ] Fuse Panel A In Engine Compartment E-Box.

• With Suppressor (C24), removing and installing, refer to => [ Suppressor ] Suppressor.

14 Plenum Chamber E-box

• Removing and installing, refer to => [ Plenum Chamber E-Box ] Plenum Chamber E-Box.

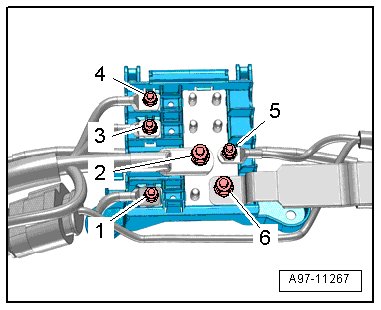

Tightening Specifications Terminal 30 Wire Junction (TV2)






1. PTC line - 18 Nm

2. Battery jump start terminal (U6) - 20 Nm

3. Nut - 7.5 Nm

4. Nut - 7.5 Nm

5. E-box positive wire - 7.5 Nm

6. Battery wire - 18 Nm

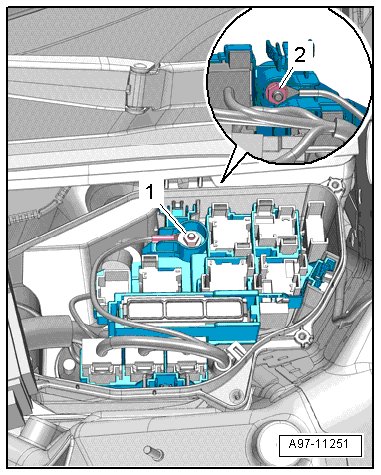

Tightening Specification: Relay Panel and Fuse Panel Inside Plenum Chamber E-Box






1. Positive wire - 9 Nm

2. Electrical wire on the back - 9 Nm


Tightening Specification: Main Fuse Panel






1. Electrical wire - 7.5 Nm

2. Nut - 9 Nm

3. Nut - 9 Nm

4. Main fuse panel inside the luggage compartment

5. Positive wire to the engine - 7.5 Nm

6. Bolt - 3.5 Nm

7. Battery Interrupt Igniter (N253).

8. Electrical wire - 18 Nm
