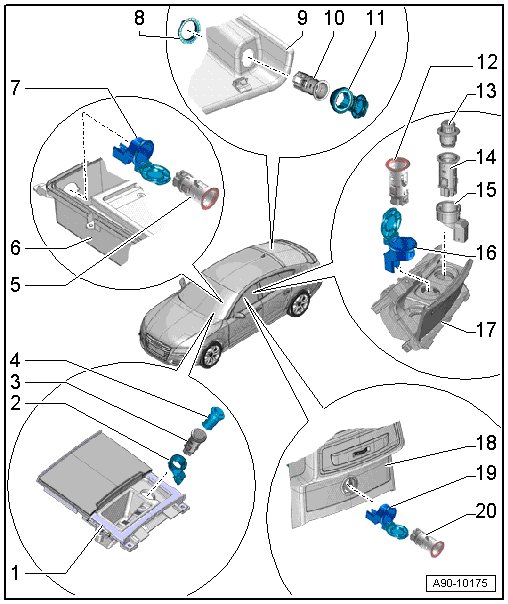

Cigarette Lighter, 12 Volt Outlet, Overview

Cigarette Lighter, 12 Volt Outlet, Overview






1 Front Ashtray

• For the Cigarette lighter (U1).

2 Cigarette Lighter Illumination (L28)

• For the Cigarette lighter (U1).

• Can only be replaced together with the cigarette lighter.

3 Cigarette Lighter (U1)

• Removing and installing, refer to => [ Cigarette Lighter (U1) ] Cigarette Lighter (U1).

4 Cigarette Lighter

5 12 V Outlet (U5)

• Removing and installing, refer to => [ Socket Illumination Bulb, 12 V Socket ] Socket Illumination Bulb, 12 V Socket.

6 Storage Compartment

• In center console

7 Socket Illumination (L42)

• For the 12 V socket (U5)

• Removing and installing, refer to => [ Socket Illumination Bulb, 12 V Socket ] Socket Illumination Bulb, 12 V Socket.

8 Nut

• 2 Nm

9 Luggage Compartment Side Trim Panel Cover

10 12 V Socket 3 (U19)

• Removing and installing, refer to => [ 12 V Socket 3 From Trim Panel ] 12 V Socket 3 From Trim Panel.

• Removing and installing, refer to => [ 12 V Socket 3 ] 12 V Socket 3.

11 Mount With Cover

• For the 12 V socket 3 (U19).

12 12 V Socket 4 (U20)

• Removing and installing, refer to => [ Socket Illumination Bulb, 12 V Socket 4 ] Socket Illumination Bulb, 12 V Socket 4.

13 Cigarette Lighter

14 Rear Cigarette Lighter (U9)

• Removing and installing, refer to => [ Rear Cigarette Lighter Illumination Bulb ] Rear Cigarette Lighter Illumination Bulb.

15 Rear Cigarette Lighter Illumination Bulb (L32)

• For the Rear cigarette lighter (U9).

• Removing and installing, refer to => [ Rear Cigarette Lighter Illumination Bulb ] Rear Cigarette Lighter Illumination Bulb.

16 Socket Illumination (L42)

• For the 12 V socket 4 (U20).

• Removing and installing, refer to => [ Socket Illumination Bulb, 12 V Socket 4 ] Socket Illumination Bulb, 12 V Socket 4.

17 Mount

• For the cigarette lighter and socket.

• Equipment level

18 Divider

• For the center console.

• Equipment level

19 Socket Illumination (L42)

• For the 12 V socket 2 (U18)

• Removing and installing, refer to => [ Socket Illumination Bulb, 12 V Socket 2 ] Socket Illumination Bulb, 12 V Socket 2.

20 12 V Socket 2 (U18)

• Removing and installing, refer to => [ Socket Illumination Bulb, 12 V Socket 2 ] Socket Illumination Bulb, 12 V Socket 2.
