Controls, Housing

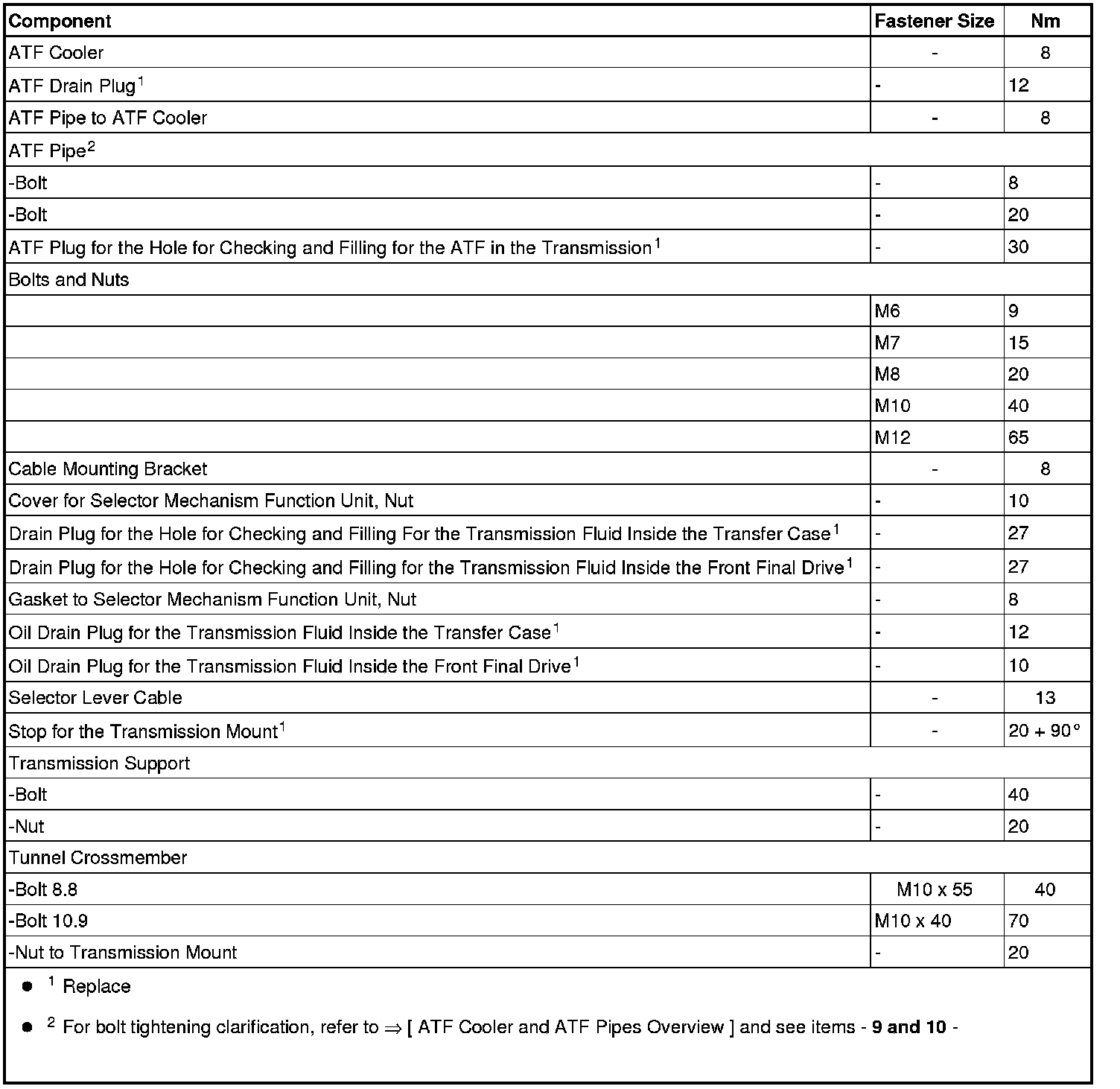

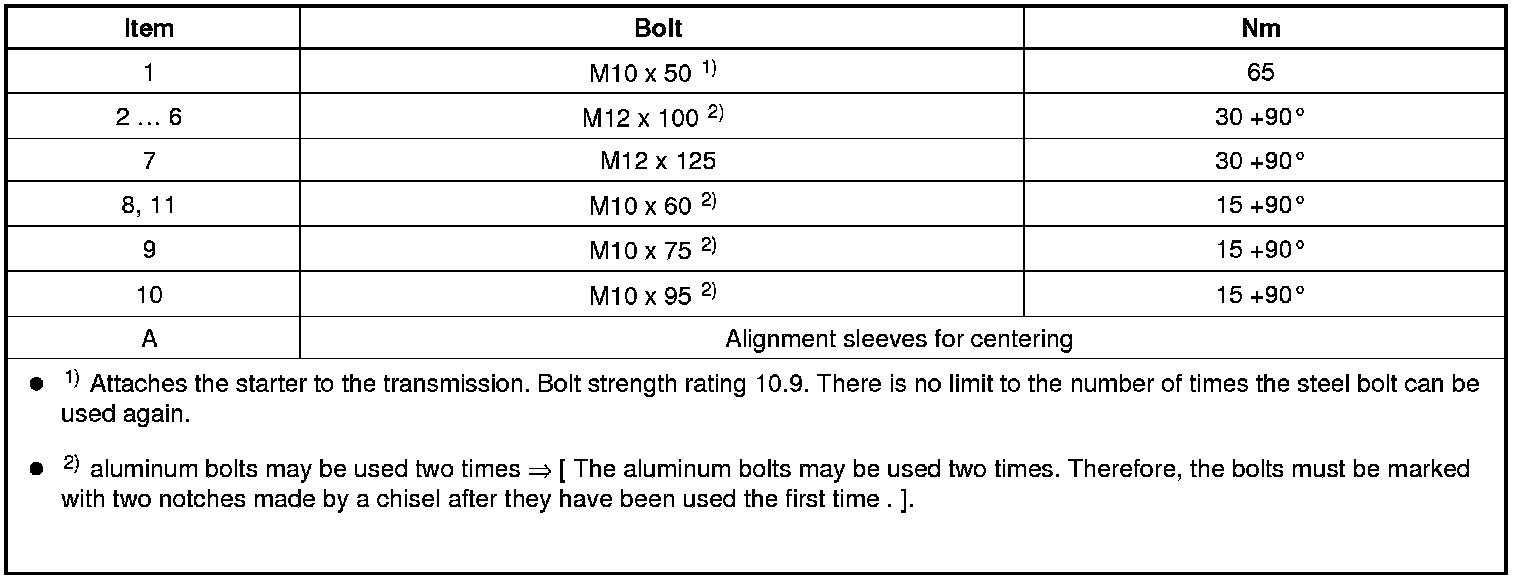

Fastener Tightening Specifications






Heat Shield - Tightening Specification






• Bolts - upper arrows -: 9 Nm.

• Bolt - lower arrow -: 20 Nm.

Drive Axle Heat Shields - Tightening Specification






• The right drive axle is shown in the illustration.

- Tighten the heat shield bolts - arrows - to 23 Nm.

Transmission Mount for the 3.0 liter TFSI
