Control Module Lower Frame

Control Module Lower Frame

Removal

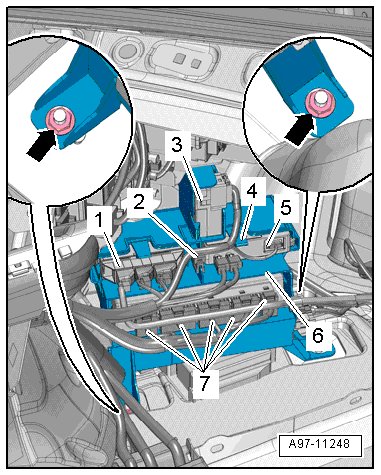

- Remove the relay and fuse panel F. The relay panels remain clipped in. Refer to => [ Relay and Fuse Panel On Right Side (SF) ] Relay and Fuse Panel on Right Side (SF).

- Free up the wiring harness - 2 -.

- Release the spring - 4 - and remove the control modules - 1, 3 and 5 -.

- Disconnect the connectors - 7 - from the Level control system control module (J197) (if equipped).

- Remove the nuts - arrows - and the frame - 6 - with the control modules.

- Disconnect the connector and antenna connector from the Rearview camera system control module (J772) (if equipped).

Installation

• Tightening specification, refer to => [ Luggage Compartment Relay and Fuse Carrier and Control Modules Overview ] Luggage Compartment Relay and Fuse Carrier and Control Modules Overview.

Install in reverse order of removal. Note the following:

- Install relay and fuse panel F. Refer to => [ Relay and Fuse Panel On Right Side (SF) ] Relay and Fuse Panel on Right Side (SF).
