Right and Left Power Output Module 3 (A29)/(A33)

Right and Left Power Output Module 3 (A29)/(A33)

Removal






- Remove headlamp housings. Refer to => [ Headlamp Housing ] Headlamp Housing.

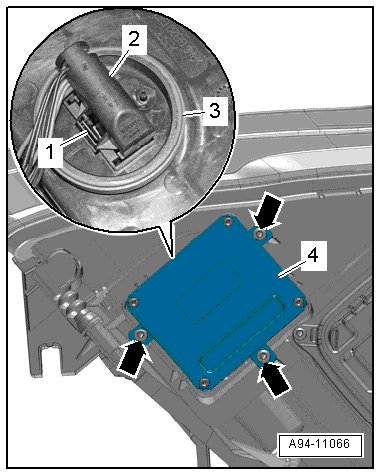

- Remove the bolts - arrows -.

- Remove the control module - 4 - from the headlamp housing.

- Press the release - 1 - and disconnect the connector - 2 -.

- Remove the control module.

Installation

• Tightening specification, refer to => [ LED Headlamps Overview ] LED Headlamps Overview.

Install in reverse order of removal. Note the following:

- Make sure the seal - 3 - between the control module and the headlamp housing is not damaged.

- Install the headlamp housing. Refer to => [ Headlamp Housing ] Headlamp Housing.
