Collision Avoidance Module: Service and Repair

Lane Change Assistance Control Modules (J769)/(J770)

Removing






- Remove the rear bumper cover.

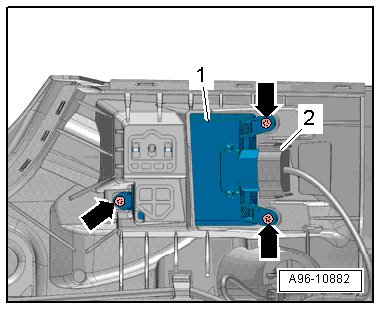

- Disconnect the electrical connector - 2 -.

- Remove the bolts - arrows -.

- Remove the lane change assistance control module - 1 - from the mount.

Installing

• Tightening specification, refer to => [ Lane Change Assistance Overview ] Lane Change Assistance Overview.

Install in reverse order of removal. Note the following:

- Install the rear bumper cover.

If the bumper cover was removed, the lane change assistance control module (J769) / (J770) must be calibrated again. Refer to => [ Lane Change Assistance, Preparing for Calibration ] Lane Change Assistance, Preparing For Calibration.
