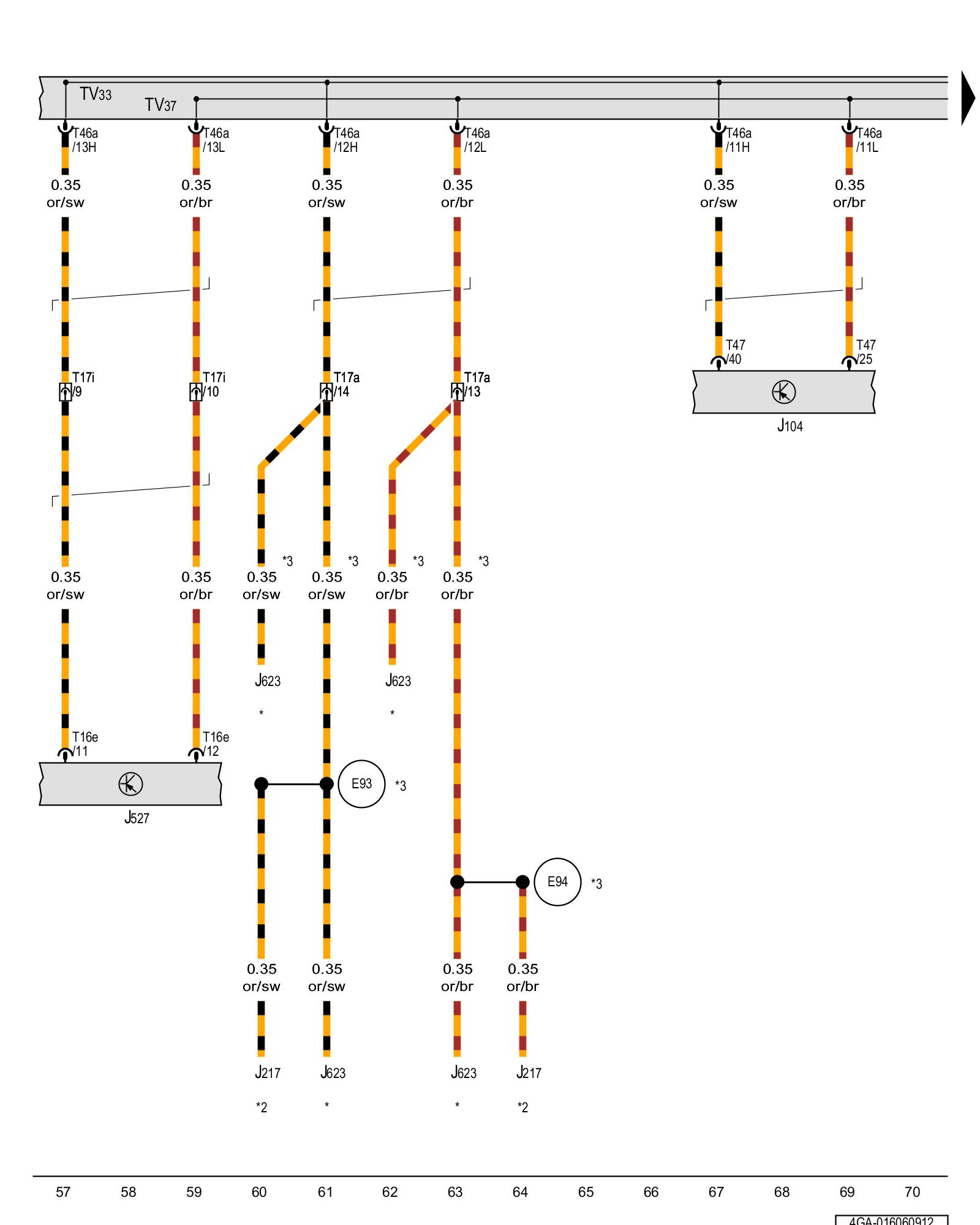

Diagram 16/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Powertrain CAN bus high wire junction, Powertrain CAN bus low wire junction





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J104 - ABS control module Locations Locations

J217 - Transmission control module Locations Locations

J527 - Steering column electronics control module Locations

J623 - Engine control module Locations

T16e - 16-pin connector Steering Column Electronic Systems Control Module -J527-

T17a - 17-pin connector, Left plenum chamber E-box connector station Locations

T17i - 17-pin connector, in the left A-pillar connector station Locations

T46a - 46-pin connector Locations

TV33 - Powertrain CAN bus high wire junction, in the left A-pillar connector station

TV37 - Powertrain CAN bus low wire junction

T47 - 47-pin connector Locations

(E93) - CAN bus high connection 1 (in engine wiring harness)

(E94) - CAN bus low connection 1 (in engine wiring harness)

* - Refer to applicable engine wiring diagram

*2 - Refer to applicable wiring diagram for automatic transmission

*3 - Depending on equipment
