Bulb Socket

Bulb Socket

Observe notes on contact corrosion => [ Contact Corrosion ] Service Precautions.

Removal






- Remove the outer tail lamp. Refer to => [ Outer Tail Lamps ] Outer Tail Lamps.

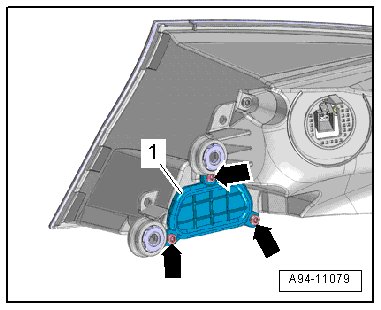

- Remove the bolts - arrows -.

- Remove the cover - 1 -.

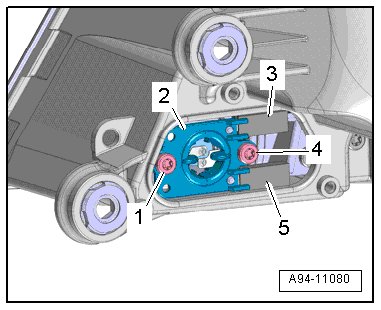

- Remove screws - 1 - and - 4 -.






- Remove the bulb socket - 2 - together with the bulb and disconnect the connectors - 3 - and - 5 -.

Installation

• Tightening specification, refer to => [ LED Outer Tail Lamps Overview ] LED Outer Tail Lamps Overview.

Install in reverse order of removal. Note the following:

- Install the outer tail lamp. Refer to => [ Outer Tail Lamps ] Outer Tail Lamps.
