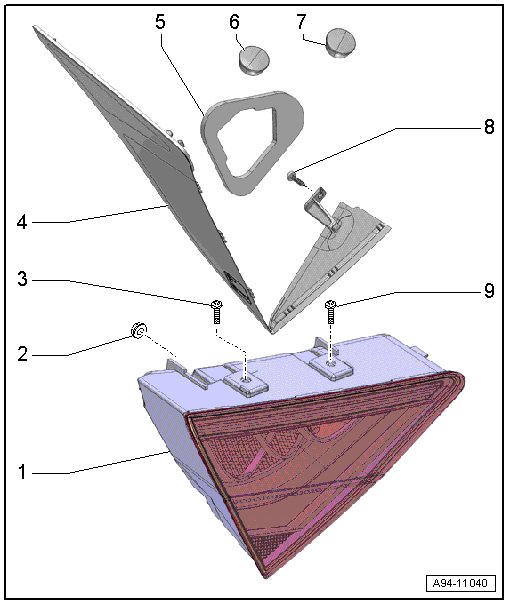

LED Inner Tail Lamp Overview

LED Inner Tail Lamp Overview

Observe notes on contact corrosion => [ Contact Corrosion ] Service Precautions.






1 Inner Tail Lamp

• Removing and installing, refer to => [ Inner Tail Lamps ] Inner Tail Lamps

2 Nut

• 2 Nm

3 Screw

• 4 Nm

4 Cover

• For the inner tail lamp.

• Removing and installing, refer to => [ Inner Tail Lamp Cover ] Inner Tail Lamp Cover.

5 Gasket

• Replace if damaged

6 Cap

7 Cap

8 Screw

• 2 Nm

• Quantity 3

9 Screw

• 4 Nm
