High-Mount Brake and License Plate Lamps Overview

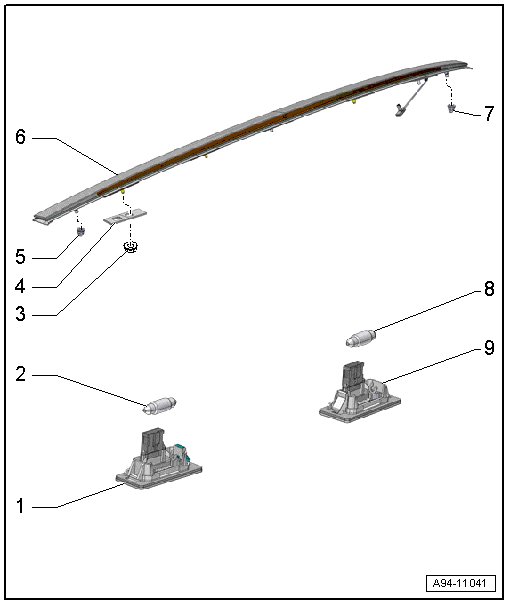

High-Mount Brake and License Plate Lamps Overview






1 Left License Plate Lamp

• Extra equipment version. Refer to Electronic Parts Catalog (ETKA).

• Removing and installing, refer to => [ License Plate Lamps (X4)/(X5) ] License Plate Lamps (X4)/(X5).

2 Left License Plate Lamp (X4)

• Vehicles through May 2011.

• 12V, 5 W

• Bulb, replacing, refer to => [ License Plate Lamps (X4)/(X5) ] License Plate Lamps (X4)/(X5).

3 Nut

• Quantity 5

4 Gasket

• Quantity 5

• Replace if damaged.

5 Clip Nut

6 High Mounted Brake Light

• With High-mounted brake lamp (M25)

• Removing and installing, refer to => [ High-Mounted Brake Lamp Bulb ] High-Mounted Brake Lamp Bulb.

7 Clip Nut

8 Right License Plate Lamp (X5)

• Vehicles through May 2011.

• 12V, 5 W

• Bulb, replacing, refer to => [ License Plate Lamps (X4)/(X5) ] License Plate Lamps (X4)/(X5).

9 Right License Plate Lamp

• Extra equipment version. Refer to Electronic Parts Catalog (ETKA).

• Removing and installing, refer to => [ License Plate Lamps (X4)/(X5) ] License Plate Lamps (X4)/(X5).

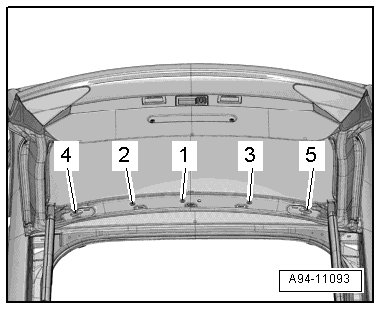

Tightening Specification and Sequence: High-Mounted Brake Lamp Bulb






- Tighten the nut to 2.5 Nm in the following sequence: - 1 to 5 -.
