Signal Horns

Signal Horns

Removal






- Remove the headlamp housing: HID headlamp, refer to => [ Headlamp Housing ] Headlamp Housing, LED headlamp, refer to => [ Headlamp Housing ] Headlamp Housing.

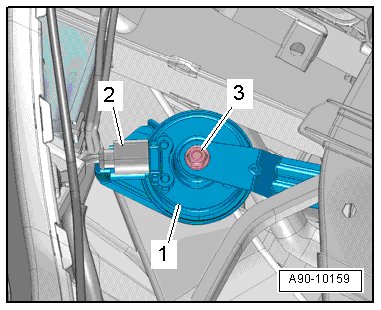

- Remove the nut - 3 -.

- Remove the horn - 1 - from the bracket.

- Disconnect the electrical connector - 2 -.

Installation

• Tightening specification, refer to => [ Signal Horns Overview ] Signal Horns Overview.

Install in reverse order of removal, observing the following:

- Install the headlamp housing: HID headlamp, refer to => [ Headlamp Housing ] Headlamp Housing, LED headlamp, refer to => [ Headlamp Housing ] Headlamp Housing.
