Right and Left Power Output Module 1 (A27)/(A31)

Right and Left Power Output Module 1 (A27)/(A31)

Removal






- Remove headlamp housings. Refer to => [ Headlamp Housing ] Headlamp Housing.

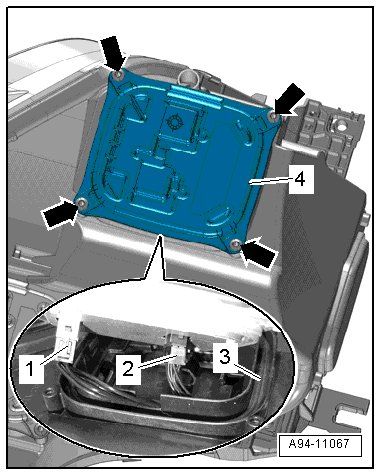

- Remove the bolts - arrows -.

- Remove the power output stage - 4 -.

- Press the release and disconnect the connectors - 1 and 2 -.

- Remove the power output stage.

Installation

• Tightening specification, refer to => [ LED Headlamps Overview ] LED Headlamps Overview.

Install in reverse order of removal. Note the following:

- Check the seal - 3 - for damage.

- Install the headlamp housing. Refer to => [ Headlamp Housing ] Headlamp Housing.
