Static Cornering Lamp Bulb, All Weather Bulb

Static Cornering Lamp Bulb, All Weather Bulb

• This bulb is solely an all weather bulb on a headlamp without a cornering lamp

Removal






- Remove headlamp housings. Refer to => [ Headlamp Housing ] Headlamp Housing.

- Remove the housing cover - 1 - from the headlamp housing.

• Ignore items - 2 , 3 -.

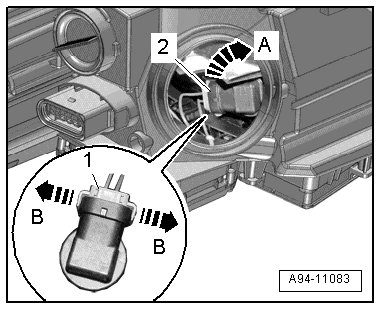

- Release the bulb - 2 -: on the left headlamp by turning it clockwise - arrow A -; turn is counter-clockwise on the right headlamp.






- Remove the bulb from the housing.

- Open the retainers - arrows B - and disconnect the connector - 1 -.

Installation






Install in reverse order of removal. Note the following:

- Insert new bulb in the housing. Do not touch the glass bulbs with bare hands.

- Turn the bulb to lock it.

- Close the housing cover - 1 -. When doing this, the strap - 2 - must align with the mark - 3 - on the headlamp housing.

- Install the headlamp housing. Refer to => [ Headlamp Housing ] Headlamp Housing.
