Static Cornering Lamp Bulb

Static Cornering Lamp Bulb

Removal






- Remove headlamp housings. Refer to => [ Headlamp Housing ] Headlamp Housing.

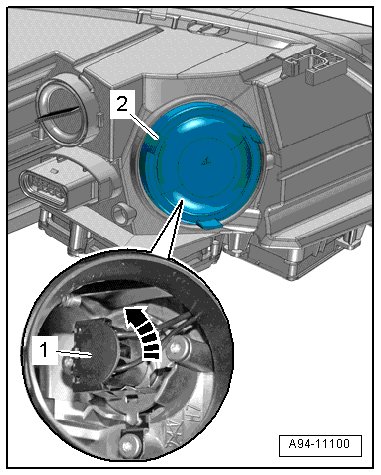

- Remove the housing cover - 2 - from the headlamp housing.

- Turn the bulb socket - 1 - in - direction of arrow -.

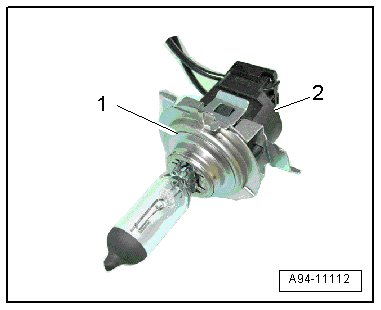

- Pull the bulb - 1 - out of the bulb socket - 2 -.






Installation






Install in reverse order of removal. Note the following:

- Insert new bulb in the bulb socket. Do not touch the glass bulbs with bare hands.

- Close the housing cover - 1 -. When doing this, the strap - 2 - must align with the mark - 3 - on the headlamp housing.

- Install the headlamp housing. Refer to => [ Headlamp Housing ] Headlamp Housing.
