Comfort Version - Add On Parts of the A/C Unit Overview
Comfort Version - Add On Parts of the A/C Unit Overview

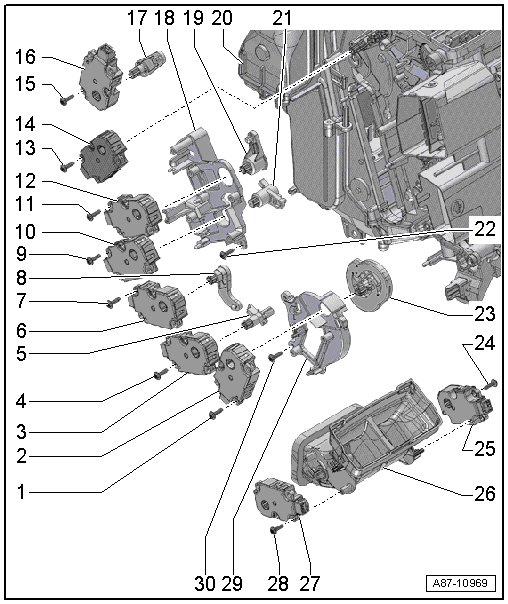

Component Group 1 Left - Air Distributor Housing, Door Control
1 Screw
• 1 Nm
• Quantity 2
2 Left Rear Air Door Motor (V239)
• Removing and installing, refer to => [ Left Rear Air Door Motor (V239) ] Left Rear Air Door Motor (V239).
3 Left Rear Temperature Door Motor (V313)
• Removing and installing, refer to => [ Left Rear Temperature Door Motor (V313) ] Left Rear Temperature Door Motor (V313).
4 Screw
• 1 Nm
• Quantity 2
5 Control Element For The Left Temperature Door
• From the heater core for the rear vents.
6 Left Footwell Door Motor (V108)
• Removing and installing, refer to => [ Left Footwell Door Motor (V108) ] Left Footwell Door Motor (V108).
7 Screw
• 1 Nm
• Quantity 2
8 Control Element For The Left Door
• For the front footwell vents
9 Screw
• 1 Nm
• Quantity 2
10 Left Side Vent Motor (V299)
• Removing and installing, refer to => [ Left Side Vent Motor (V299) ] Left Side Vent Motor (V299).
11 Screw
• 1 Nm
• Quantity 2
12 Left Vent Adjustment Motor (V110)
• Removing and installing, refer to => [ Left Center Vent Motor (V110) ] Left Center Vent Motor (V110).
13 Screw
• 1 Nm
• Quantity 3
14 Defroster Door Motor (V107)
• Removing and installing, refer to => [ Defroster Door Motor (V107) ] Defroster Door Motor (V107).
15 Screw
• 1 Nm
• Quantity 2
16 Left Temperature Door Motor (V158)
• Removing and installing, refer to => [ Left Temperature Door Motor (V158) ] Left Temperature Door Motor (V158).
17 Control Element For The Left Temperature Door
• From the heater core for the front vents.
18 Bracket
• For the control motors (V110) / (V299).
• Removing and installing, refer to => [ Bracket for the Control Motors (V110)/(V299) ] Bracket For the Control Motors (V110)/(V299).
19 Control Element For The Left Door
• For the center instrument panel vents.
20 Air Distribution Housing
• Remove and install the A/C unit, refer to => [ A/C Unit ] A/C Unit.
• Overview, refer to => [ Air Distributor Housing, Evaporator Housing, Evaporator ] Overhaul.
21 Control Element For The Left Door
• For the side instrument panel vents.
22 Screw
• 1 Nm
• Quantity 4
23 Cam Plate For The Left Doors
• For the rear footwell vents, vents in the center console and B-pillar vents.
24 Screw
• 1 Nm
• Quantity 2
25 Right Rear Upper Body Vent Motor (V316)
• Removing and installing, refer to => [ Right Rear Upper Body Vent Motor (V316) ] Right Rear Upper Body Vent Motor (V316).
26 Rear Vent Air Guide
• In the rear center console.
• Overview, refer to => [ Air Routing and Distribution in Passenger Compartment ] Air Routing and Distribution In Passenger Compartment.
27 Left Rear Upper Body Vent Motor (V315)
• Removing and installing, refer to => [ Left Rear Upper Body Vent Motor (V315) ] Left Rear Upper Body Vent Motor (V315).
28 Screw
• 1 Nm
• Quantity 2
29 Bracket
• For the control motor (V239).
• Removing and installing, refer to => [ Bracket for Control Motor (V239) ] Bracket For Control Motor (V239).
30 Screw
• 1 Nm
• Quantity 3

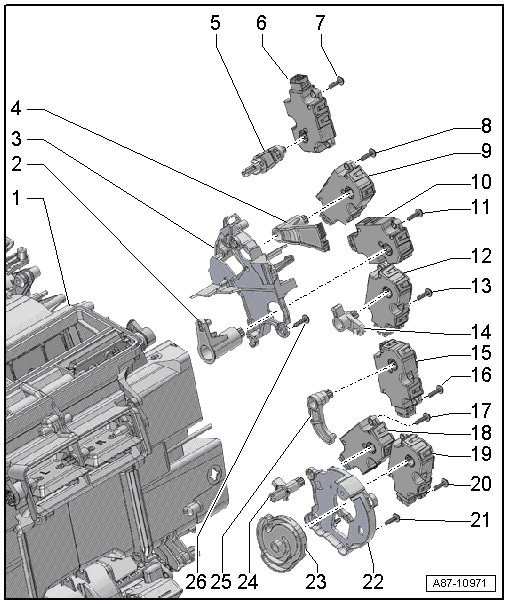

Component Group 1 Right - Air Distributor Housing, Door Control
1 Air Distribution Housing
• Remove and install the A/C unit, refer to => [ A/C Unit ] A/C Unit.
• Overview, refer to => [ Air Distributor Housing, Evaporator Housing, Evaporator ] Overhaul.
2 Right Door Control Element
• For the center instrument panel vents.
3 Bracket
• For the control motors (V111) / (V213).
• Removing and installing, refer to => [ Bracket for Control Motors (V111)/(V213) ] Bracket For Control Motors (V111)/(V213).
4 Control Element For The Doors - "Indirect Ventilation"
• For the vents in the upper instrument panel.
5 Control Element For The Right Temperature Door
• From the heater core for the front vents.
6 Right Temperature Door Motor (V159)
• Removing and installing, refer to => [ Right Temperature Door Motor (V159) ] Right Temperature Door Motor (V159).
7 Screw
• 1 Nm
• Quantity 2
8 Screw
• 1 Nm
• Quantity 2
9 Indirect Ventilation Door Control Motor (V213)
• Removing and installing, refer to => [ Indirect Ventilation Door Motor (V213) ] Indirect Ventilation Door Motor (V213).
10 Right Center Vent Motor (V111)
• Removing and installing, refer to => [ Right Center Vent Motor (V111) ] Right Center Vent Motor (V111).
11 Screw
• 1 Nm
• Quantity 2
12 Right Side Vent Motor (V300)
• Removing and installing, refer to => [ Right Side Vent Motor (V300) ] Right Side Vent Motor (V300).
13 Screw
• 1 Nm
• Quantity 2
14 Control Elements For The Right Door
• For the side instrument panel vents.
15 Right Footwell Door Motor (V109)
• Removing and installing, refer to => [ Right Footwell Door Motor (V109) ] Right Footwell Door Motor (V109).
16 Screw
• 1 Nm
• Quantity 3
17 Screw
• 1 Nm
• Quantity 2
18 Right Rear Temperature Door Motor (V314)
• Removing and installing, refer to => [ Right Rear Temperature Door Motor (V314) ] Right Rear Temperature Door Motor (V314).
19 Right Rear Air Door Motor (V240)
• Removing and installing, refer to => [ Right Rear Air Door Motor (V240) ] Right Rear Air Door Motor (V240).
20 Screw
• 1 Nm
• Quantity 2
21 Screw
• 1 Nm
• Quantity 3
22 Bracket
• For the control motor (V240).
• Removing and installing, refer to => [ Bracket for Control Motor (V240) ] Bracket For Control Motor (V240).
23 Cam Plate For The Right Doors
• For the rear footwell vents, vents in the center console and B-pillar vents.
24 Control Element For The Right Door
• For the front footwell vents.
25 Control Element For The Right Temperature Door
• From the heater core for the rear vents
26 Screw
• 1 Nm
• Quantity 4
Component Group 2 - Air Distributor Housing, Heater Core
1 Coolant Pipe For Heater Core
• Coolant supply from engine.
2 Coolant Pipe For Heater Core
• Coolant return to engine.
3 O-ring Seal
• Replace
4 Clamp
• 2 Nm
5 Coolant Pipe Brackets
• For heater core.
6 Screw
• 2 Nm
7 Auxiliary Air Heater Heating Element (Z35)
• For vehicles with a TDI engine.
8 Screw
• 2 Nm
• Quantity 2
9 Electrical Wire
• For vehicles with a TDI engine
10 Ground Wire
• For vehicles with a TDI engine
11 Air Distribution Housing
• In vehicles with a gasoline engine, the opening for the auxiliary heater is sealed.
• Remove and install the A/C unit, refer to => [ A/C Unit ] A/C Unit.
• Overview, refer to => [ Air Distributor Housing, Evaporator Housing, Evaporator ] Overhaul.
12 Heater Core
• Removal and installation, refer to => [ Heater Core ] Service and Repair.
13 Clamp
• 2 Nm
14 O-ring Seal
• Replace
