Rear Air Guide Channel

Rear Air Guide Channel

Removal






- Remove the center console and the front bracket for the center console.

- If present, remove the rear upper body vent temperature sensor. Refer to => [ Left/Right Rear Upper Body Vent Temperature Sensor (G635)/(G636) ] Left/Right Rear Upper Body Vent Temperature Sensor (G635)/(G636).

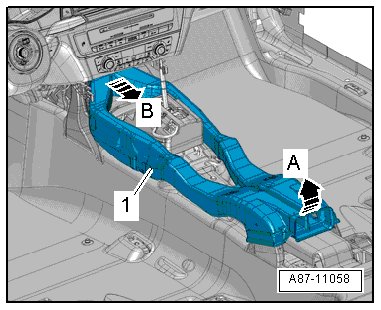

- Tilt the rear air guide channel - 1 - upward - arrow B - and remove from the locking mechanism on the air distributor housing - arrow A -.

- Remove the rear air guide channel.

Installation

Installation is done in reverse order, observe the following:

- Install the rear upper body vent temperature sensor. Refer to => [ Left/Right Rear Upper Body Vent Temperature Sensor (G635)/(G636) ] Left/Right Rear Upper Body Vent Temperature Sensor (G635)/(G636).

- Install the center console and the front bracket for the center console.
