Basic Version - Add On Parts of A/C Unit Overview
Basic Version - Add On Parts of A/C Unit Overview

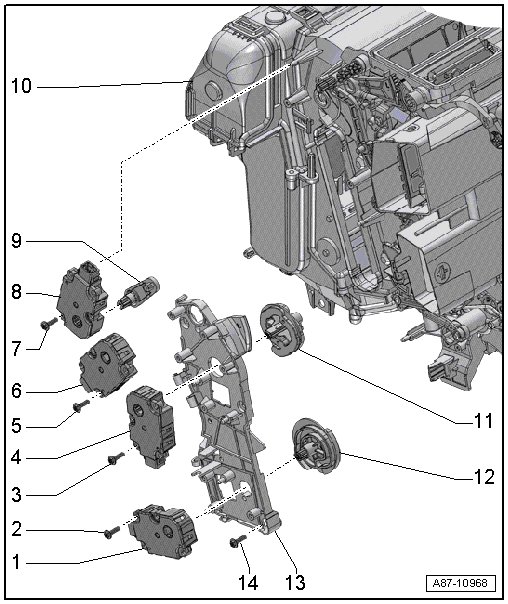

Component Group 1, Left - Air Distributor Housing, Door Control
1 Left Footwell Door Motor (V108)
• Removing and installing, refer to => [ Left Footwell Door Motor (V108) ] Left Footwell Door Motor (V108).
2 Screw
• 1 Nm
• Quantity 2
3 Screw
• 1 Nm
• Quantity 2
4 Left Vent Adjustment Motor (V110)
• Removing and installing, refer to => [ Left Center Vent Motor (V110) ] Left Center Vent Motor (V110).
5 Screw
• 1 Nm
• Quantity 3
6 Defroster Door Motor (V107)
• Removing and installing, refer to => [ Defroster Door Motor (V107) ] Defroster Door Motor (V107).
7 Screw
• 1 Nm
• Quantity 2
8 Left Temperature Door Motor (V158)
• Removing and installing, refer to => [ Left Temperature Door Motor (V158) ] Left Temperature Door Motor (V158).
9 Control Element For The Left Temperature Doors
• From the heater core for the front vents.
10 Air Distribution Housing
• Heating and A/C unit, removing and installing, refer to => [ A/C Unit ] A/C Unit.
• Overview, refer to => [ Air Distributor Housing, Evaporator Housing, Evaporator ] Overhaul.
11 Cam Plate For The Control Elements Of The Left Doors
• For the instrument panel vents in the center and vents in the center console.
12 Cam Plate For The Control Elements Of The Left Doors
• For the side instrument panel vents, front footwell vents, and rear footwell vents.
13 Bracket
• For the control motors (V107) / (V108) / (V110)
• Removing and installing, refer to => [ Bracket For Control Motors (V107)/(V108)/(V110) ] Bracket For Control Motors (V107)/(V108)/(V110).
14 Screw
• 1 Nm
• Quantity 4

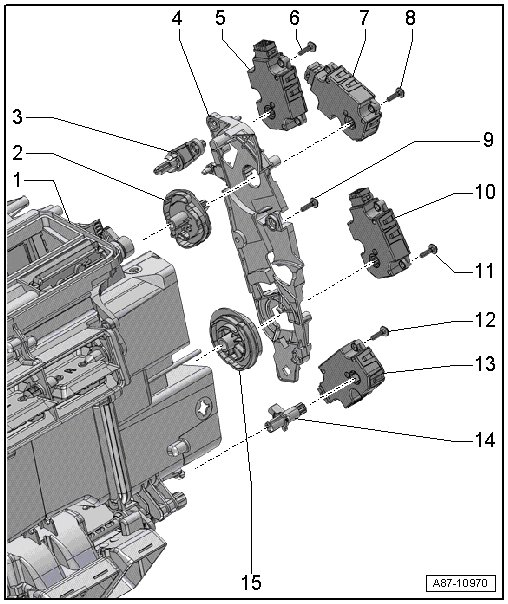

Component Group 1 Right - Air Distributor Housing, Door Control
1 Air Distribution Housing
• Remove and install the A/C unit, refer to => [ A/C Unit ] A/C Unit.
• Overview, refer to => [ Air Distributor Housing, Evaporator Housing, Evaporator ] Overhaul.
2 Cam Plate For The Control Elements Of The Right Doors
• For the instrument panel vents in the center and vents in the center console.
3 Control Element For The Right Temperature Doors
• From the heater core for the front vents.
4 Bracket
• For the control motors (V109) / (V111)
• Removing and installing, refer to => [ Bracket For Control Motors (V109)/(V111) ] Bracket For Control Motors (V109)/(V111).
5 Right Temperature Door Motor (V159)
• Removing and installing, refer to => [ Right Temperature Door Motor (V159) ] Right Temperature Door Motor (V159).
6 Screw
• 1 Nm
• Quantity 2
7 Right Center Vent Motor (V111)
• Removing and installing, refer to => [ Right Center Vent Motor (V111) ] Right Center Vent Motor (V111).
8 Screw
• 1 Nm
• Quantity 2
9 Screw
• 1 Nm
• Quantity 4
10 Right Footwell Door Motor (V109)
• Removing and installing, refer to => [ Right Footwell Door Motor (V109) ] Right Footwell Door Motor (V109).
11 Screw
• 1 Nm
• Quantity 2
12 Screw
• 1 Nm
• Quantity 2
13 Rear Temperature Regulator Door Motor (V137)
• Removing and installing, refer to => [ Rear Temperature Door Motor (V137) ] Rear Temperature Door Motor (V137).
14 Control Elements For The Rear Temperature Doors
• From the heater core for the rear vents.
15 Cam Plate For The Control Elements For The Right Doors
• For the side instrument panel vents, front footwell vents, and rear footwell vents.

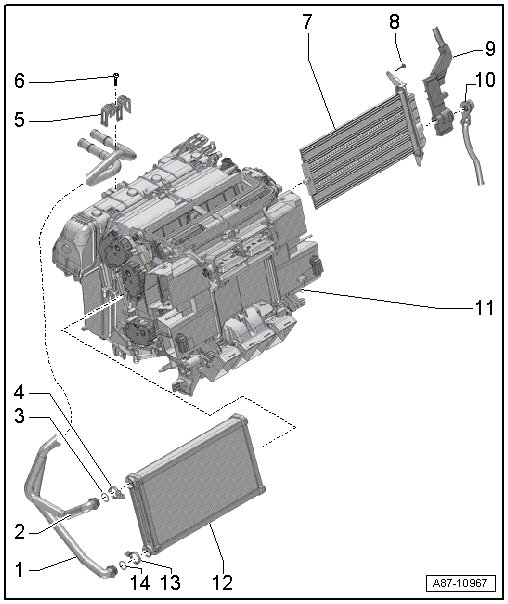

Component Group 2 - Air Distributor Housing, Heater Core
1 Coolant Pipe For Heater Core
• Coolant supply from engine.
2 Coolant Pipe For Heater Core
• Coolant return to engine.
3 O-ring Seal
• Replace
4 Clamp
• Tightening specifications, refer to item 4 => [ (Item 4) Clamp ] Comfort Version - Add On Parts of the A/C Unit Overview.
5 Coolant Pipe Brackets
• For heater core
6 Screw
• Tightening specifications, refer to item 6 => [ (Item 6) Screw ] Comfort Version - Add On Parts of the A/C Unit Overview.
7 Auxiliary Air Heater Heating Element (Z35)
• For vehicles with a TDI engine
8 Screw
• Tightening specifications, refer to => [ Component Group 2
- Air Distributor Housing, Heater Core ] Comfort Version - Add On Parts of the A/C Unit Overview.
• Quantity 2
9 Electrical Wire
• For vehicles with a TDI engine
10 Ground Wire
• For vehicles with a TDI engine
11 Air Distribution Housing
• In vehicles with a gasoline engine without an Auxiliary heater heating element (Z35) , the opening for the auxiliary heater is sealed.
• Remove and install the A/C unit, refer to => [ A/C Unit ] A/C Unit.
• Overview, refer to => [ Air Distributor Housing, Evaporator Housing, Evaporator ] Overhaul.
12 Heater Core
• Removing and installing, refer to => [ Heater Core ] Service and Repair.
13 Clamp
• Tightening specifications, refer to item 13 => [ (Item 13) Clamp ] Comfort Version - Add On Parts of the A/C Unit Overview.
14 O-ring Seal
• Replace
