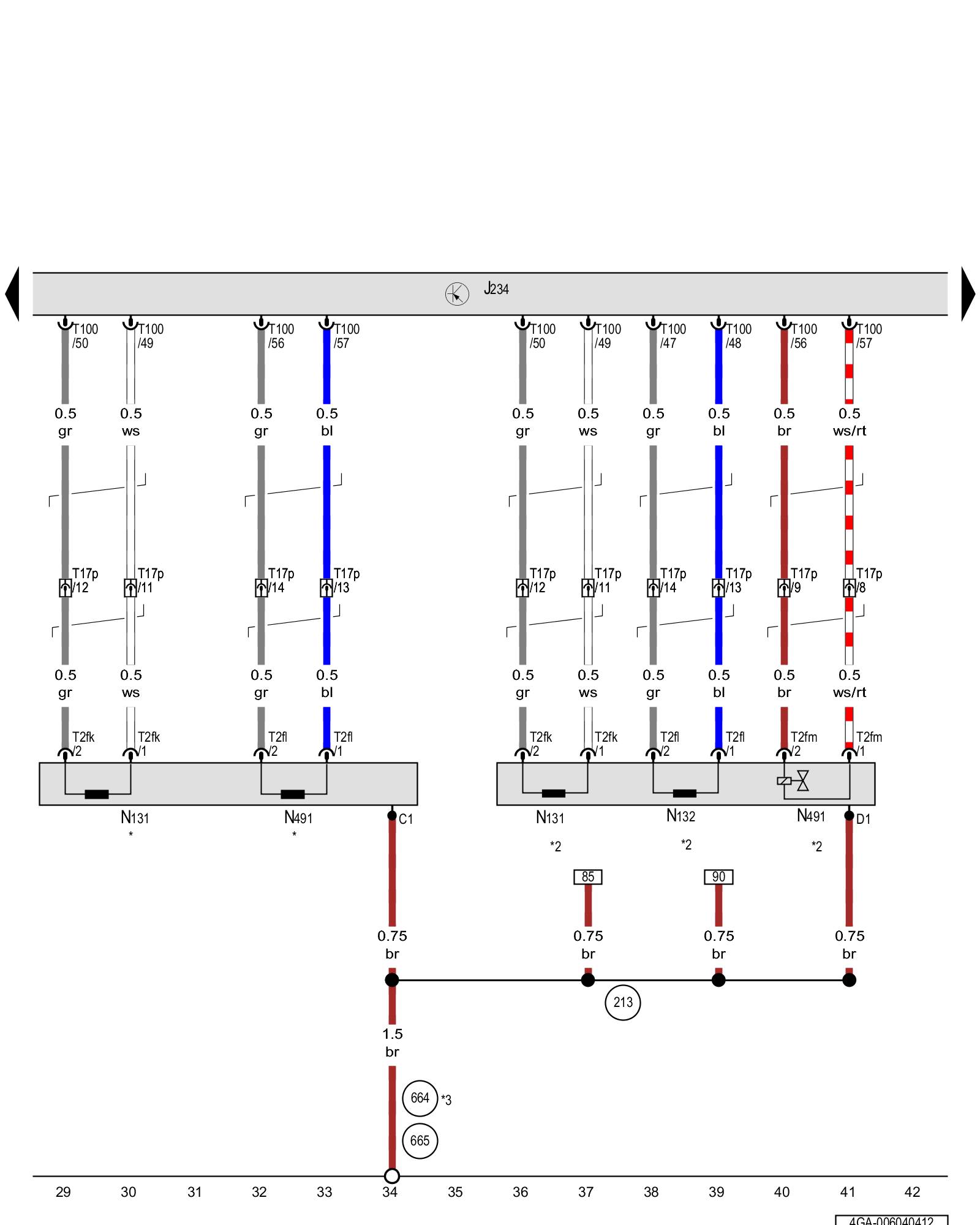

Diagram 6/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Airbag control module, Front passenger airbag igniter 1, Front passenger airbag release valve igniter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J234 - Airbag control module Locations

N131 - Front passenger airbag igniter 1 Locations

N132 - Front passenger airbag igniter 2 Locations

N491 - Front passenger airbag release valve igniter Locations

T2fk - Double connector Steering Column Electronic Systems Control Module -J527-

T2fl - Double connector

T2fm - Double connector

T17p - 17-pin connector, in the connector station, right A-pillar Locations

T100 - 100-pin connector Locations

(213) - Ground connection (in instrument panel wiring harness)

(664) - Ground connection behind instrument panel, left [1][2]Ground Locations

(665) - Ground connection behind instrument panel, right [1][2]Ground Locations

* - Not for USA

*2 - USA only

*3 - Only for right-hand drive vehicles
