Backrest Cover and Backrest Cushion For Rear Seat Backrest

Backrest Cover and Backrest Cushion for Rear Seat Backrest

Special tools, testers and auxiliary items required

• Upholstery clip pliers (V.A.G 1634)

Removing






- Remove the rear seat backrest => [ Rear Seat Backrest ] Rear Seat Backrest.

- Remove the backrest cover and backrest cushion from the rear seat backrest. Refer to => [ Backrest Cover with Rear Seat Backrest Cushion ] Backrest Cover With Rear Seat Backrest Cushion.

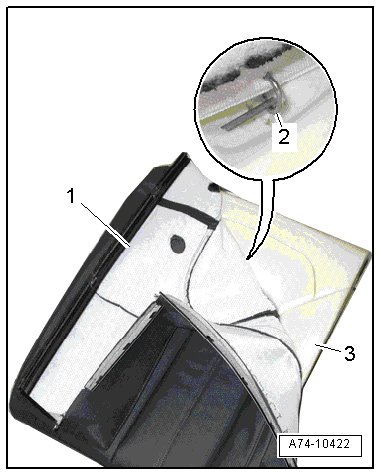

- Pull off backrest cover - 1 - from the backrest cushion - 3 - as far as possible and cut upholstery clips - 2 - using pliers.

Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Backrest Cover and Backrest Cushion for Rear Seat Backrest Assembly Overview ] Backrest Cover and Backrest Cushion For Rear Seat Backrest Assembly Overview.
