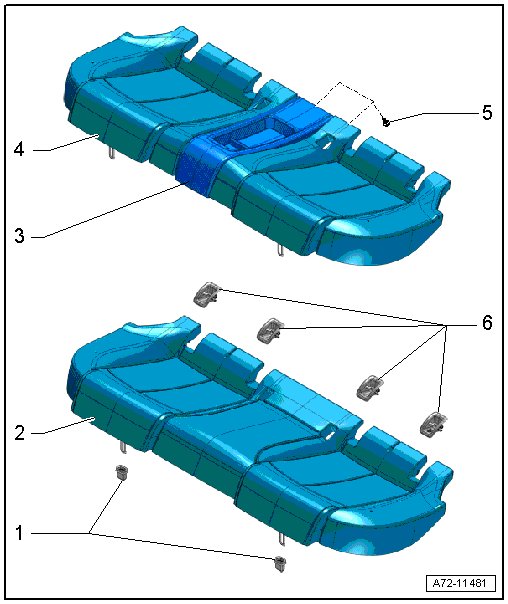

Rear Seat Bench Assembly Overview

Rear Seat Bench Assembly Overview






1 Grommets

• Quantity: 2

• For fastening the rear seat bench

• Clipped into the vehicle floor

• Replace each time the rear seat bench is removed

2 Rear bench seat

• If equipped Standard

• Removing and Installing, refer to => [ Rear Bench Seat ] Rear Bench Seat

3 Center storage compartment

• Removing and Installing, refer to => [ Center Storage Compartment ] Center Storage Compartment

4 Rear seat bench - Super Sport seat

• Version with center storage

• Removing and Installing, refer to => [ Rear Bench Seat ] Rear Bench Seat

5 Bolt

• Quantity: 2

• 2.8 Nm

6 Guides

• For the LATCH child seat anchor

• clipped to the LATCH child seat anchorage brackets that are welded to the floor
