Rear Seat Backrest Assembly Overview

Rear Seat Backrest Assembly Overview

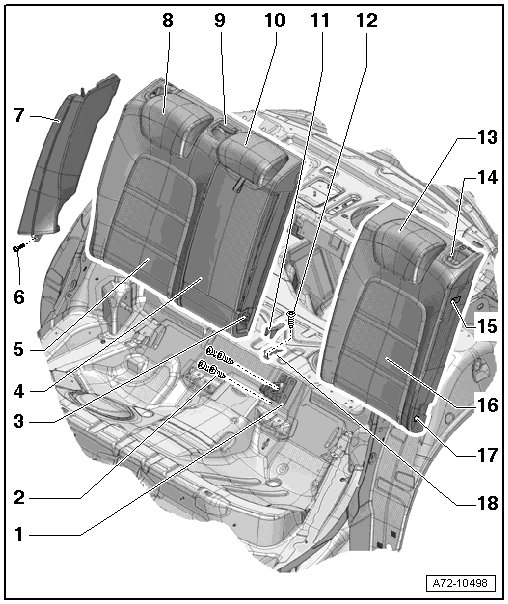

Standard Seat/Sport Seat

• The 2-seat rear seat backrest is shown in the illustration.






1 Center bracket

• Removing and Installing, refer to => [ Center Bracket ] Center Bracket

2 Screws

• Quantity: 4

• 20 Nm

3 Inner mounting pin

• for the rear seat backrest

• Quantity: 2

• 13.5 Nm

• Removing and Installing, refer to => [ Inner Mounting Pin ] Inner Mounting Pin

4 Rear center armrest

Optional equipment:

• with pass-through flap

• With storage compartment

• Assembly Overview, refer to => [ Rear Center Armrest Assembly Overview ] Rear Center Armrest Assembly Overview

• Removing and Installing, refer to => [ Rear Center Armrest ] Rear Center Armrest

5 Rear seat backrest, 2/3 right

Optional equipment:

• Backrest heater

• Pass-through

• Removing and Installing, refer to => [ Rear Seat Backrest ] Rear Seat Backrest

6 Bolt

• 3 Nm

• For the correct tightening specification for If equipped side airbags, refer to => [ Rear Side Airbag Assembly Overview ] Rear Side Airbag Assembly Overview

7 Side upholstery

Optional equipment:

• Rear side airbag

• Removing and Installing, refer to => [ Side Cushion ] Side Cushion

• Engage in the seat belt guide at the top first

8 Right head restraint

• Removing and Installing, refer to => [ Rear Headrest, Standard Seat/Sport Seat ] Rear Headrest, Standard Seat/Sport Seat

9 Rear center belt guide

• Only If equipped 3-seater rear seat bench

• Replace the entire belt guide if damaged.

• Removing and Installing, refer to => [ Center Rear Belt Guide, Vehicles with 3-Seater Rear Seat Bench ] Center Rear Belt Guide, Vehicles With 3-Seater Rear Seat Bench

10 Headrest in the center

• Only If equipped 3-seater rear seat bench

• Removing and Installing, refer to => [ Rear Headrest, Standard Seat/Sport Seat ] Rear Headrest, Standard Seat/Sport Seat

11 Cover

• for the center bracket

• Removing and Installing, refer to => [ Rear Seat Backrest ] Rear Seat Backrest

• Press on until it engages audibly

12 Bolt

• 9 Nm

13 Left head restraint

• Removing and Installing, refer to => [ Rear Headrest, Standard Seat/Sport Seat ] Rear Headrest, Standard Seat/Sport Seat

14 Trim

• For locking

• Removing and Installing, refer to => [ Locking Mechanism Trim ] Locking Mechanism Trim

• Press on until it engages audibly

15 Locking tab

• For the rear seat backrest

• Removing and Installing, refer to => [ Rear Seat Backrest Locking Mechanism ] Rear Seat Backrest Locking Mechanism

16 Rear seat backrest, 1/3, left

• Removing and Installing, refer to => [ Rear Seat Backrest ] Rear Seat Backrest

17 Outer bearing sleeve

• Quantity: 2

• Removing and Installing, refer to => [ Outer Bearing Sleeve ] Outer Bearing Sleeve

• Press on until it engages audibly

18 Securing bracket

• for the center bracket

• Removing and Installing, refer to => [ Rear Seat Backrest ] Rear Seat Backrest

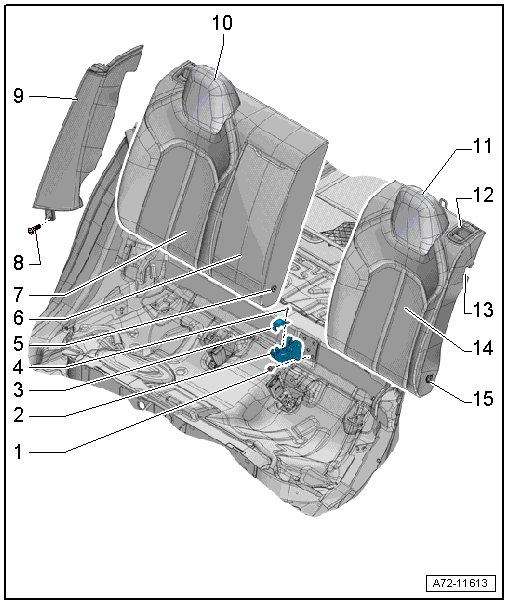

Super Sport Seat






1 Screws

• Quantity: 4

• 20 Nm

2 Center bracket

• Removing and Installing, refer to => [ Center Bracket ] Center Bracket

3 Securing bracket

• for the center bracket

• Removing and Installing, refer to => [ Rear Seat Backrest ] Rear Seat Backrest

4 Bolt

• 9 Nm

5 Inner mounting pin

• for the rear seat backrest

• Quantity: 2

• 13.5 Nm

• Removing and Installing, refer to => [ Inner Mounting Pin ] Inner Mounting Pin

6 Rear center armrest

Optional equipment:

• with pass-through flap

• With storage compartment

• Assembly Overview, refer to => [ Rear Center Armrest Assembly Overview ] Rear Center Armrest Assembly Overview

• Removing and Installing, refer to => [ Rear Center Armrest ] Rear Center Armrest

7 Rear seat backrest, 2/3 right

Optional equipment:

• Backrest heater

• Pass-through

• Removing and Installing, refer to => [ Rear Seat Backrest ] Rear Seat Backrest

8 Bolt

• 3 Nm

• For the correct tightening specification for If equipped side airbags, refer to => [ Rear Side Airbag Assembly Overview ] Rear Side Airbag Assembly Overview

9 Side upholstery

Optional equipment:

• Rear side airbag

• Removing and Installing, refer to => [ Side Cushion ] Side Cushion

• Engage in the seat belt guide at the top first

10 Right head restraint

• Removing and Installing, refer to => [ Rear Headrest, Super Sport Seat ] Rear Headrest, Super Sport Seat

11 Left head restraint

• Removing and Installing, refer to => [ Rear Headrest, Super Sport Seat ] Rear Headrest, Super Sport Seat

12 Trim

• For locking

• Removing and Installing, refer to => [ Locking Mechanism Trim ] Locking Mechanism Trim

• Press on until it engages audibly

13 Locking tab

• for the rear seat backrest

• Removing and Installing, refer to => [ Rear Seat Backrest Locking Mechanism ] Rear Seat Backrest Locking Mechanism

14 Rear seat backrest, 1/3, left

• Removing and Installing, refer to => [ Rear Seat Backrest ] Rear Seat Backrest

15 Outer bearing sleeve

• Quantity: 2

• Removing and Installing, refer to => [ Outer Bearing Sleeve ] Outer Bearing Sleeve

• Press on until it engages audibly
