Center Storage Compartment

Center Storage Compartment

Removing






- Remove rear seat bench. Refer to => [ Rear Bench Seat ] Rear Bench Seat.

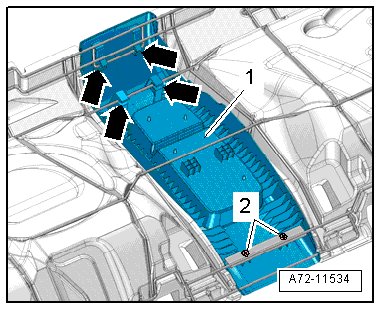

- Remove the bolts - 2 -.

- Unclip the center support - 1 - from the seat frame - arrows -.

- Remove the center support from the seat frame.

Installation

Install in reverse order of removal. Note the following:

- When installing, make sure all the tabs slide onto the seat frame and the center storage compartment engages completely.

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Rear Seat Bench Assembly Overview ] Rear Seat Bench Assembly Overview.
