Pass-Through Frame

Pass-Through Frame

Special tools, testers and auxiliary items required

• Release lever (T10039)

Removing






- Fold down the rear center armrest and open the pass-through door.

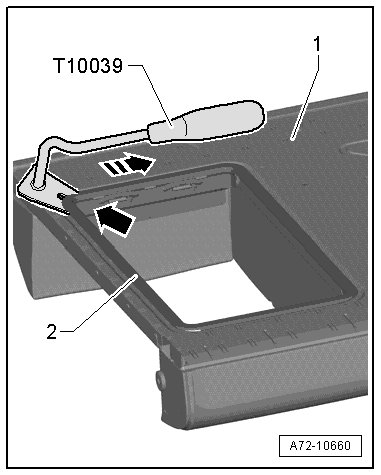

- Pry the frame - 2 - off the rear seat backrest - 1 - using a release lever (T10039).

- Continue prying off starting at the upper left corner - arrow - in - direction of arrow -.

Installation

Install in reverse order of removal. Note the following:

- Make sure the cover frame engages completely in the rear seat backrest.

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Rear Center Armrest Assembly Overview ] Rear Center Armrest Assembly Overview.
