Part 2

Center Armrest Trim

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)

Removing






- Remove the rear center armrest. Refer to => [ Rear Center Armrest ] Rear Center Armrest.

- Remove the trim from the center armrest. Refer to => [ Center Armrest Trim ] Center Armrest Trim.

- Pry the cover - 1 - off the trim - 2 - using a trim removal wedge (3409) unclip the tabs - arrow B - out of the loops - arrow A -

- Remove the cover from the center armrest trim.

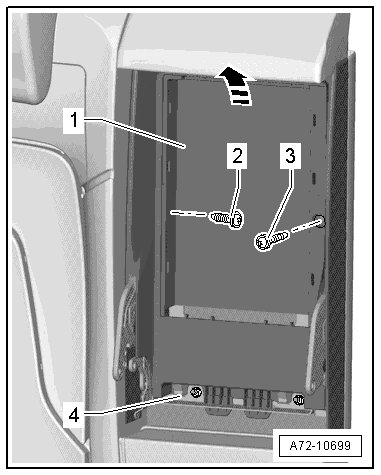

- Remove the screws - 2 - and - 3 - from the trim - 1 -.

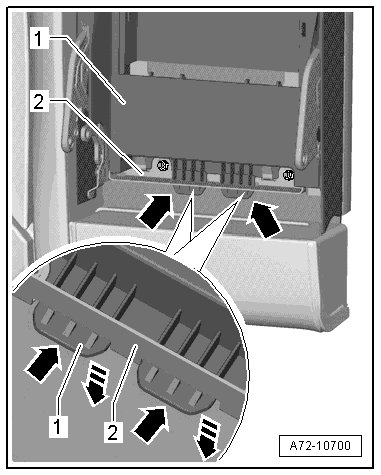

- Press the tabs - arrows - in - direction of arrow - until they come out of the trim - 1 - on the bracket - 2 -.






- Remove the center armrest trim - 1 - at an angle out of the bracket - 4 - - arrow -.






Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Rear Center Armrest Assembly Overview ] Rear Center Armrest Assembly Overview.
