Part 1

Center Armrest Trim

Removing

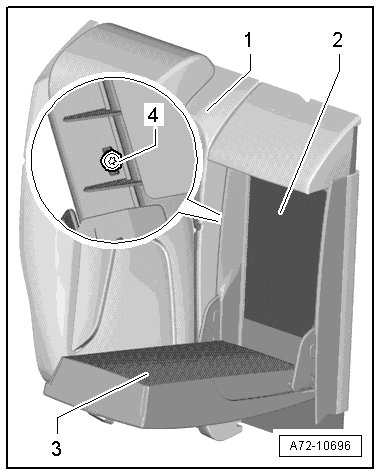

- Fold down the rear center armrest - 3 -.

- Push the backrest cushion and backrest cover - 1 - to the side and remove the screw - 4 - from the trim - 2 - on the center armrest.

- Hold the center armrest trim - 2 - at the bottom and pull it as far as possible off the center armrest - 1 - - arrow -.

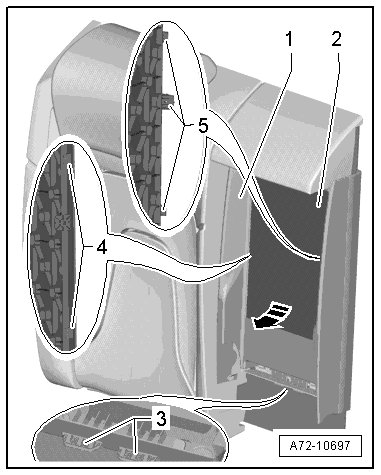

- Release the tabs - 4 - and - 5 -.

• Ignore - 3 -.

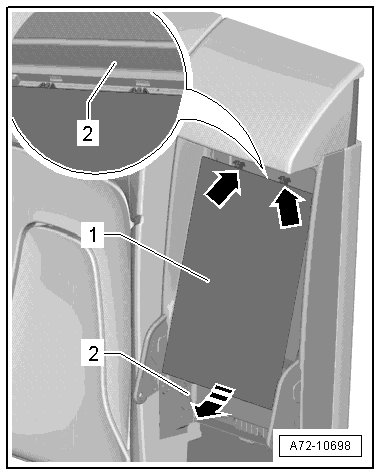

- Remove the center armrest trim - 1 - in - direction of arrow - from the center armrest cover - 2 - while unlocking the hook - upper arrows -.






The hooks on the upper side of the center armrest trim can get damaged during removal.

Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Rear Center Armrest Assembly Overview ] Rear Center Armrest Assembly Overview.
