Massage Function Buttons E670/E671

Massage Function Buttons E670/E671

Driver side massage function button (E670) / front passenger side massage function button (E671)

Removing






- Remove the trim on the sill side. Refer to => [ Sill Side Trim with Front Trim ] Sill Side Trim With Front Trim.

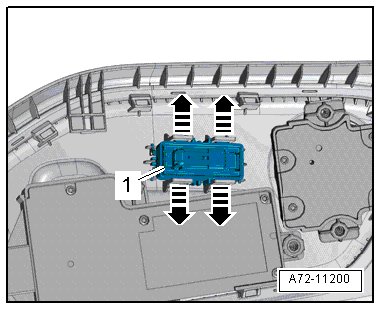

- Press out massage function button - 1 - from the trim and remove it by releasing the locks - arrows -.

Installation

Install in reverse order of removal. Note the following:

- Insert massage function button and press on it until it audibly engages.
