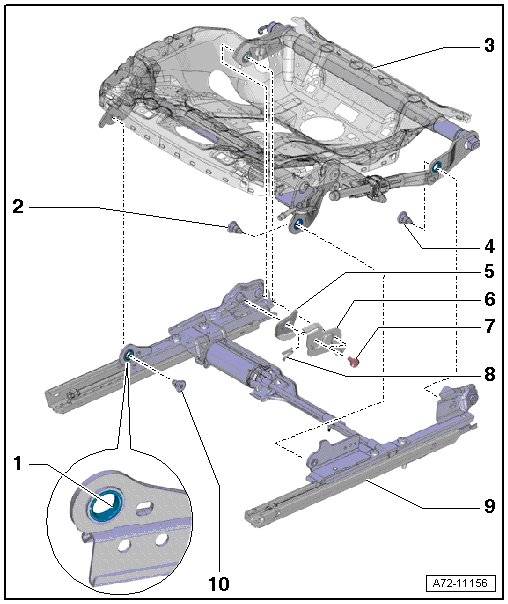

Seat Frame Assembly Overview

Seat Frame Assembly Overview






1 Bushing

• Inserted in all bracket locations

• Cannot be replaced with workshop materials

• The assembly component must be replaced if the bushing is damaged

2 Bolt

• Self-locking

• Replacing

• Threaded holes for screws must be cleaned, for example, with thread cutter

• 22 Nm

3 Upper seat pan frame

• Removing and Installing, refer to => [ Upper Seat Pan Frame ] Upper Seat Pan Frame

• For the correct allocation, refer to => Parts Catalog

• Install all electrical and electronic components and wires in the new upper frame.

4 Bolt

• Self-locking

• Replacing

• Threaded holes for screws must be cleaned, for example, with thread cutter

• 22 Nm

5 Safety ground lock

• Removing and Installing, refer to => [ Safety Ground Lock ] Safety Ground Lock

• Check for ease of movement => [ Checking Safety Ground Lock for Ease of Movement ] Checking Safety Ground Lock For Ease of Movement

6 Retaining plate

7 Bolt

• Quantity: 2

• For the correct tightening specification refer to => [ Safety Ground Lock Assembly Overview ] Safety Ground Lock Assembly Overview

8 Spring

9 Lower seat pan frame

• Driver side: with driver seat forward/back adjustment motor (V28)

• Front passenger side: with front passenger seat forward/back adjustment motor (V31)

• Cannot be disassembled

• Removing and Installing, refer to => [ Seat Forward/Back Adjustment Motors V28 and V31 ] Seat Forward/Back Adjustment Motors V28 and V31

• For replacing, install the Removing and Installing and seat belt latch in the new lower frame

10 Bolt

• Self-locking

• Replacing

• Threaded holes for screws must be cleaned, for example, with thread cutter

• 22 Nm
