Glove Compartment Cover Brake Component

Glove Compartment Cover Brake Component

Removing






- Remove the glove compartment:

• => [ Glove Compartment, Version without Knee Airbags ] Glove Compartment, Version Without Knee Airbags.

• => [ Glove Compartment, Version with Knee Airbags ] Glove Compartment, Version With Knee Airbags.

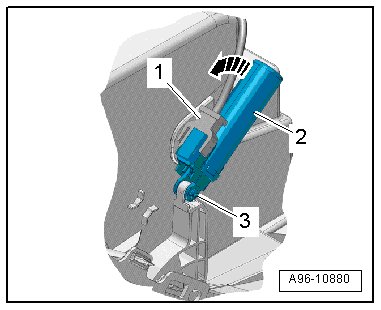

- Disconnect the connector - 1 -.

- Remove hinge pins - 3 -.

- Release the lid dampening mechanism - 2 - by turning counterclockwise - arrow - and remove it.

Installation

Install in reverse order of removal. Note the following:

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Glove Compartment Assembly Overview ] Glove Compartment Assembly Overview.
