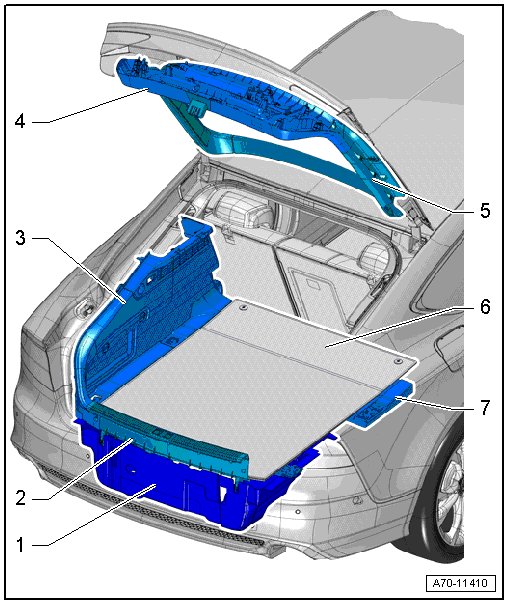

Luggage Compartment Trim Overview

Luggage Compartment Trim Overview






1 Spare wheel well trim

• Assembly Overview, refer to => [ Luggage Compartment Floor Mat Assembly Overview ] Luggage Compartment Floor Mat Assembly Overview

• Removing and Installing, refer to => [ Spare Wheel Well Trim ] Spare Wheel Well Trim

2 Rear cross panel trim

• Assembly Overview, refer to => [ Rear Lid End Panel Trim Panel Assembly Overview ] Rear Lid End Panel Trim Panel Assembly Overview

• Removing and Installing, refer to => [ Rear Cross Panel Trim ] Rear Cross Panel Trim

3 Luggage compartment side trim

• Assembly Overview, refer to => [ Luggage Compartment Side Trim Assembly Overview ] Luggage Compartment Side Trim Assembly Overview

• Removing and Installing, refer to => [ Luggage Compartment Side Trim Panel ] Luggage Compartment Side Trim Panel

4 Lower rear lid trim

• Assembly Overview, refer to => [ Lower Rear Lid Trim Assembly Overview ] Lower Rear Lid Trim Assembly Overview

• Removing and Installing, refer to => [ Lower Rear Lid Trim ] Lower Rear Lid Trim

5 Upper/side rear lid trim panel

• Assembly Overview, refer to => [ Lower Rear Lid Trim Assembly Overview ] Lower Rear Lid Trim Assembly Overview

• Removing and Installing, refer to => [ Upper Rear Lid Trim Panel ] Upper Rear Lid Trim Panel

6 Luggage compartment floor covering

• Assembly Overview, refer to => [ Luggage Compartment Floor Mat Assembly Overview ] Luggage Compartment Floor Mat Assembly Overview

• Removing and Installing, refer to => [ Luggage Compartment Liner ] Luggage Compartment Liner

7 Rear panel sill frame

• Assembly Overview, refer to => [ Luggage Compartment Floor Mat Assembly Overview ] Luggage Compartment Floor Mat Assembly Overview

• Removing and Installing, refer to => [ Rear Panel Sill Frame ] Rear Panel Sill Frame
