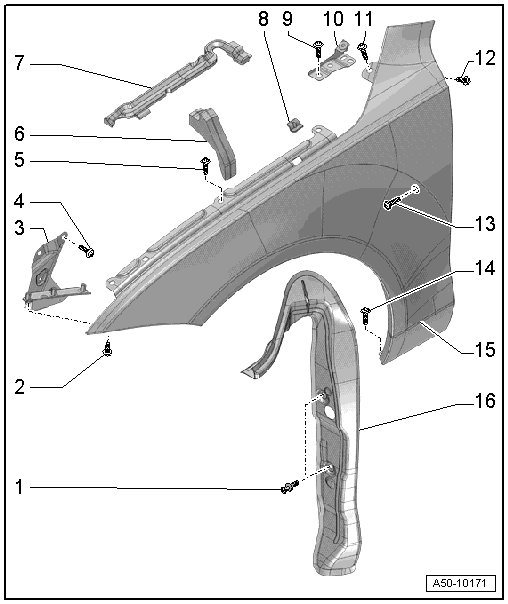

Fender Assembly Overview

Fender Assembly Overview






1 Expanding rivet

• Quantity: 2

2 Bolt

• 10 Nm

3 Lower bracket

• For the fender

• Removing and Installing, refer to => [ Lower Fender Bracket ] Lower Fender Bracket

4 Bolt

• Quantity: 2

• 10 Nm

5 Bolt

• Quantity: 3

• 10 Nm

6 Seal

• Inside on the fender

7 Seal

8 Grommet

• Driver side only, opening for the windshield washer fluid hose to the spray nozzles

9 Bolt

• Quantity: 2

• 10 Nm

10 Upper bracket

• For the fender

• Removing and Installing, refer to => [ Upper Fender Bracket ] Upper Fender Bracket

11 Bolt

• 10 Nm

12 Bolt

• 10 Nm

13 Bolt

• Quantity: 2

• 10 Nm

14 Bolt

• Quantity: 2

• 10 Nm

15 Fender

• Removing and Installing, refer to => [ Fender ] Fender

16 End plate

• Removing and Installing, refer to => [ End Plate ] End Plate
