A-Pillar Gap Cover

A-Pillar Gap Cover

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)

Removing






- Remove the instrument panel side cover. Refer to => [ Instrument Panel Side Cover ] Instrument Panel Side Cover.

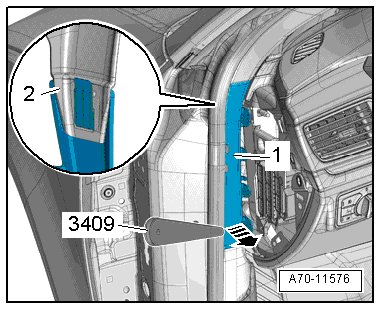

- Unclip the lower gap cover - 1 - from the A-pillar using a trim removal wedge (3409) - arrow - and remove it from the A-pillar trim - 2 - downward.

Installation

Install in reverse order of removal. Note the following:

- Install the A-pillar gap cover into the A-pillar and then stretch the door seal lip over it.

Information for installation: for example tightening specifications, replacing body parts, refer to => [ Front Sill Panel Trim Assembly Overview ] Front Sill Panel Trim Assembly Overview.
